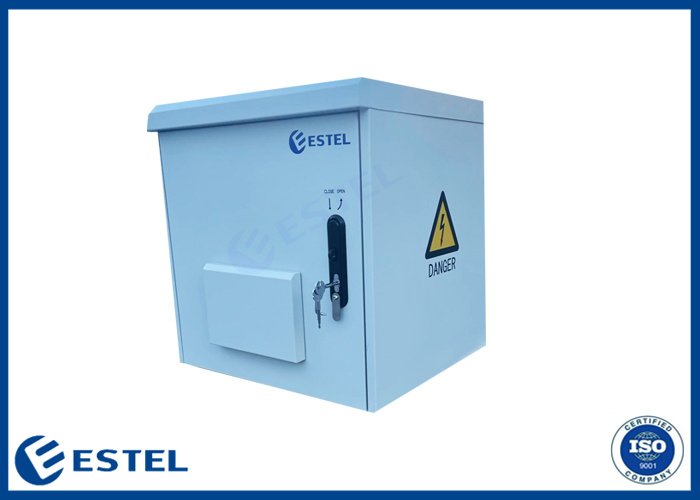

Small Size IP65 Fully Enclosed Cabinet Galvanized Steel 9U Outdoor Telecom Cabinet
1. Cabinet Protection Level:
IP54/IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
2.Cabinet Advantages:
High integrated
(1)High compatibility, high integration
Supporting multiple equipments, good appearance
(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
One compartment/two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
3.Cabinet Parameters
| Outdoor Cabinet Configuration |
| Cabinet Dimension | Customized design n demand Height Space: 9U to 42U on demand Width: 600mm, 800mm, 1200mm or others on demand Depth: 600mm, 800mm, or others on demand |
| Materials | Option 01: High quality cold-rolled steel, or galvanized steel Option 02: Frame + PU Sandwich Panel Option 03: Stainless Steel materials S.S.201/304/316 Frame materials thickness: 1.5mm, 2.0mm Panel materials thickness: 1.0mm, 1.2mm, 1.5mm |
| Cabinet Structure | Double layer insulation structure Customized design as per the equipment requirements |
| Cabinet Surface | Powder Coating Color: RAL7035 or other on demand |
| Installation Rack | 19” or 21” standard installation rack Silkscreen with Standard “U” marks Separate battery cabin or rack |
| Locking system | Safe lock system, 3 point or 4 point locking |
| Protection Level | IP65, |
| Cable Entry | With Base Plinth From Bottom, Entry hole sizes on demand |
| Installation | Floor mounting on base Wall or Pole mounting for small size cabinet |
| Temperature Controlling System |
| Air Conditioner Type | Air Conditioner 600W, 800W, 1000W, 1200W, 1500W AC or DC power input TEC Air Conditioner |
| Heat Exchanger Type | Power Rate as per request |
| Fan cooling Type | Fan for structure cooling flow |
| Mixed Type | On demand of customer |
| Power Supply System (For Option) |
| Power Distribution Unit | AC Power Distribution and DC Power Distribution Switch Ways as per equipment |
| AC/DC Switch Power | On demand, Optional |
| DC/AC inverter | On demand, Optional |
| Oil machine interface | On demand, Optional |
| Battery | Iron lithium battery or Accumulator Battery, Optional |
| Environmental Monitoring System (For Option) |
| EMS Unit | On demand, Optional |
| Sensors | Door Access Sensor Temperature and Humidity Sensor Smoke Sensor Water Immersion Sensor Optional |
| Other Equipment and Fixtures |
| Lighting System | LED light, with door access switch |
| Grounding Bar | 2pcs Grounding Bars |
| ODF Subrack | On demand, Optional |
| MDF Line | On demand, Optional |
4. Cabinet Intrenal Picture

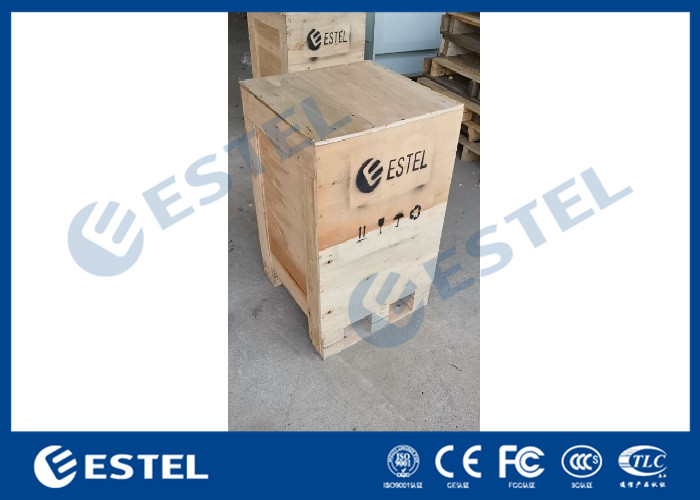

5. Cabinet Package
Wooden case with pallets
6. Grounding Protection
The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar
