One Door IP65 42U 19" Rack Outdoor Telecom Enclosure

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : 131090921050008

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W× D×H 900 ×900 ×2100mm

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Air conditioner

Protection Level : IP65

Contact Now

IP65 19 Inch Rack One Front Door 42U Outdoor Communication Cabinet



1.Cabinet Instruction



This one compartment cabinet is very popular in our market. It can support the installation of electronical equipments installed on 19 inch rack. It has 1 front doors for easily access. This cabinet is suitable to be used in telecommunication system,wireless network system for different applications.



2.Technical Parameter



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 900×900×2100mm
Layout 1 compartment
Equipment Installation Method 19” rack  .
Door With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel
Structure Assembled
Mounting type Floor mounting type
Ingress Protection IP65
Temperature Control Cooling Air conditioner
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



3.Cabinet Application


This outdoor telecom cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.


4. Cabinet Description

4.1 Cabinet Material


The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.

4.2 Cabinet Door and Lock

The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
 The cabinet door lock is theftproof three point lock, supporting padlock.

 One Door IP65 42U 19" Rack Outdoor Telecom Enclosure

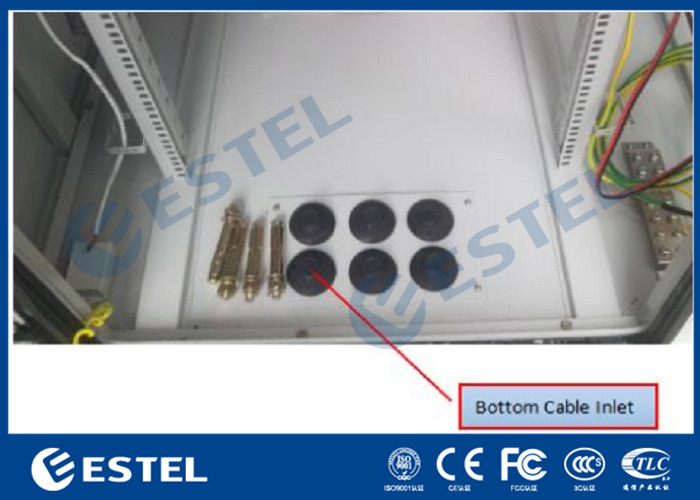

4.3.Cabinet Inlets

There are 6 cabinet inlets at the bottom of the cabinet.

One Door IP65 42U 19" Rack Outdoor Telecom Enclosure

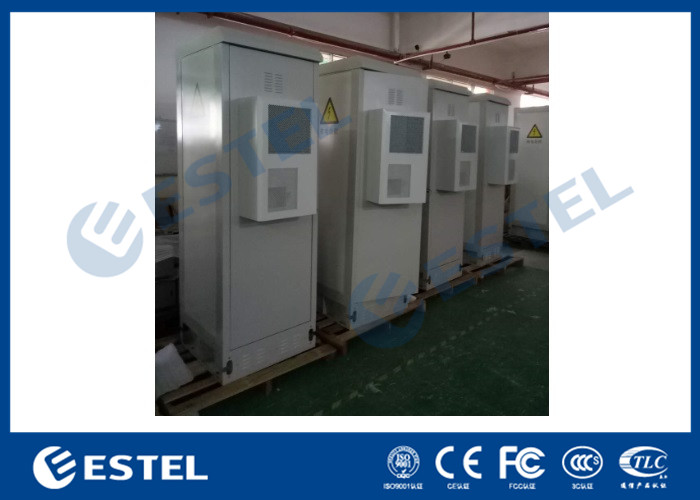

5. Cabinet Production



One Door IP65 42U 19" Rack Outdoor Telecom Enclosure





6. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
