Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet

Name: Two Doors IP55 19quot Rack 42U Outdoor Communication Cabinet
Brand: ESTEL
Price: 1 USD

Buy cheap Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet product

Brand Name : ESTEL

Model Number : 111080620050002

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Material : Galvanized steel,single wall with heat insulation

Protection level : IP55

Cooling system : Air conditioner

Structure : One compartment

Cabinet Door : One front door and one back door

Cable Entry : From cabinet bottom

Door lock : Anti-theft three point lock

Certificates : CE

Contact Now

19 Inch Rack 42U Outdoor Communication Cabinet Two Doors IP55

1. Cabinet Advantage

High reliability, maintenance-free, fast assembly, suitable for harsh environment
High integration, small footprint, short construction period, reduce the construction cost
Improved thermal design, efficient energy saving, effectively extending the battery life
Support for fast assembly, ready for the summit, multi-scene roof installation
Dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported

2. Cabinet Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension W×D×H 900×900×2100mm
	Layout	One compartment
	Equipment Installation Method	19” standard rack,42U
	Door	One front door and one back door ,with three point lock for outdoor cabinet (support padlock)
	Material	Galvanized steel,single wall
	Structure	Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	Air conditioner
Lighting	LED lamp	48V LED lamp
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1124 × (1±5%)W/m2

3. Cabinet Features

External Dimension is W×D×H 900×900×2100mm
Galvanized steel,single wall with heat insulation
Anti-theft three point lock
The cabinet includes 19” standard installation rack.
The cabinet cooling uses one air conditioner.
Including -48VDC illumination lamp.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
IP55 protection level.

4. Cabinet Dimension

External dimension is W×D×H 900×900×2100mm

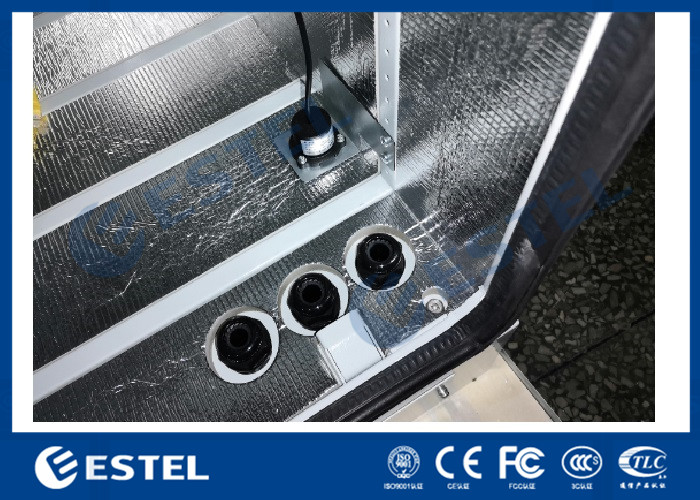

5. Cable Inlet

All feeder cable and other external cables all use bottom wiring method.

Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet

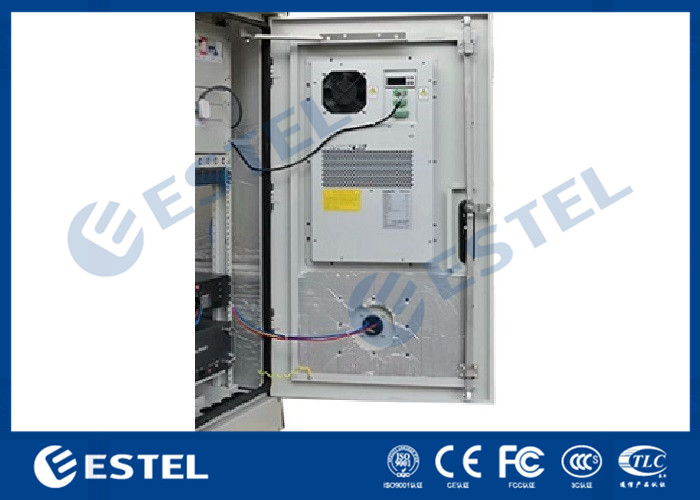

6. Cooling System

There is one 2000W cooling capacity air conditioner installed on the front door of the cabinet.

Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet

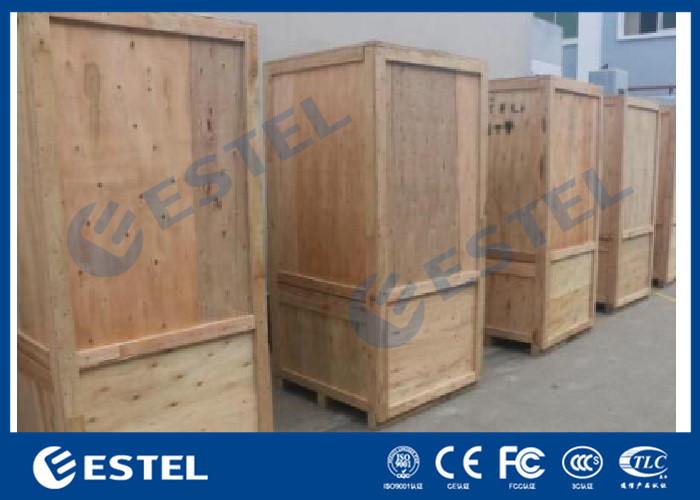

7. Cabinet Package

Wooden case with pallets

Two Doors IP55 19" Rack 42U Outdoor Communication Cabinet
