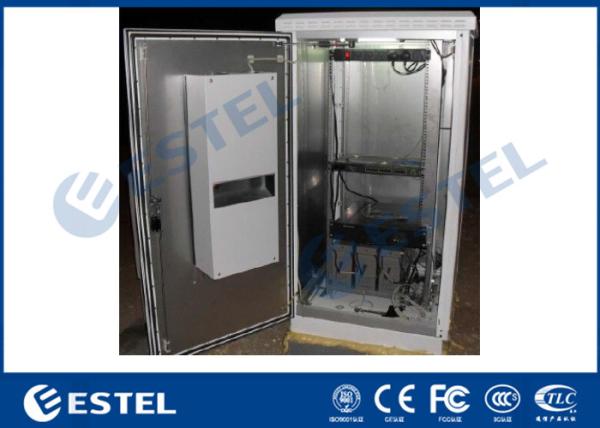

One Compartment 62kpa 48V LED IP55 Outdoor Rack Cabinet

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : 132081016050001

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Material : Galvanized steel

Protection level : IP55

Cooling system : Air conditioner

Structure : One compartment

Cabinet Door : One front door and one back door

Cable Entry : From cabinet bottom

Door lock : Anti-theft three point lock

Certificates : CE

Contact Now



Air Cooler IP55 Outdoor Rack Cabinet Outdoor Network Cabinet



1. Description



The cabinet is one compartment, double-wall cabinet. The cabinet cooling uses AC air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.



2. Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: H*W*D 1650*800*1000mm

Internal Dimension: H*W*D 1350*740*950mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door and one back door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Welded
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



3.Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set (1) External Dimension: H*W*D 1650*800*1000mm; Internal Dimension: H*W*D 1350*740*950mm.        (2) 1 compartment;                                                   (3) With one front door and one back door, and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
2 Air Conditioner 1 Set Cooling capacity: 1.5KW, AC220V, 50HZ;
3 110V TO 220V INVERTER 1 Set Used for air conditioner input
4 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
5 Environment Monitoring Unit 1 Set 2U, Model: SM2200
6 Water Sensor 1 PC
7 Smoke Sensor 1 PC
8 Temperature and Humidity Sensor 1 PC
9 Door Sensor 4 PC Control LED lamps
10 LED Lamp 2 PC DC48V
11 Embedded Telecom Power System (UPS) 1 Set DC48V, 60A, 3210W;
12 Power Distribution Unit 1 Set Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4
13 Lead Acid Battery 4 SET 12V 150AH; Model: SP12-150
14 Package 1 Set Wooden Case

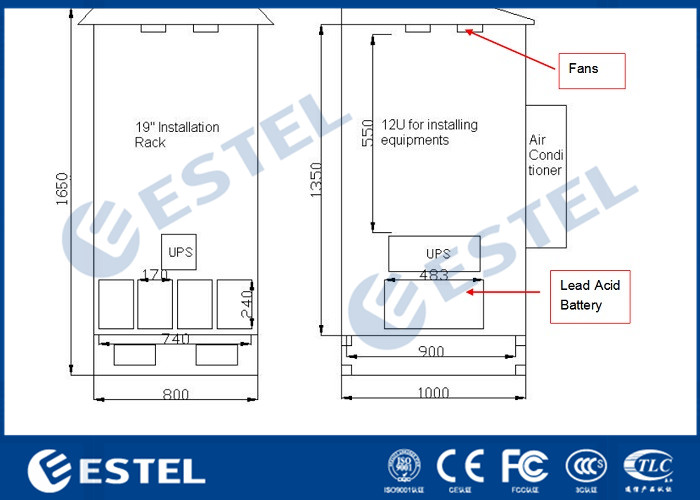

4. Cabinet Dimension



One Compartment 62kpa 48V LED IP55 Outdoor Rack Cabinet

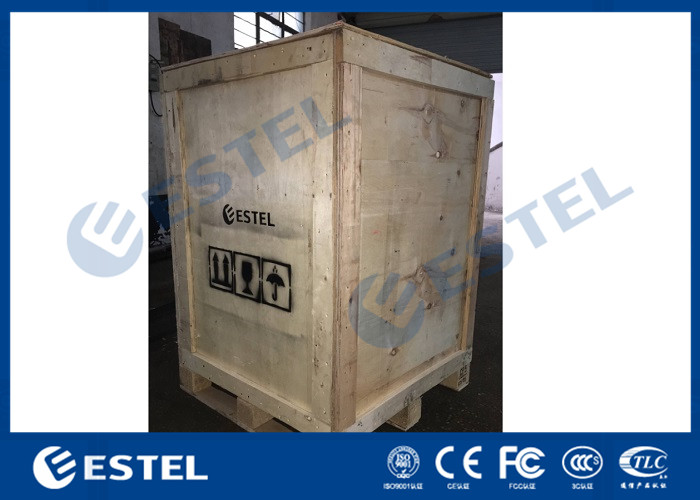

5. Cabinet Package



Wooden case with pallets



One Compartment 62kpa 48V LED IP55 Outdoor Rack Cabinet
