Insulated Steel 27U Outdoor Telecom Cabinet Front Back Both Side Access Weatherproof Communication Enclosure
Overview
The outdoor telecom cabinet ET7575150-EQ-2D has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.
The cabinet is configured with fully locking doors to both front and rear faces allowing for access from both sides of the electrical equipment being integrated. The construction of the cabinet consists of a dual skinned, thermally insulated chamber for maximum protection against solar gain and ambient temperature.
Feature
● Front and rear door to access the inside equipment
● Anti corrosion powder coating
● Standard 19“ rack for installation
● IP55
● Cooling by air conditioner and emergency fan
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft lock, excellent keyhole protection device
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and shock sensor. Environmental monitoring system provides alarm
● -48VDC LED light is switched on during the door being opened
● Custom made power distribution unit
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7575150-EQ-2D |
| Size | External Size: 1500mm×750mm×750mm(H×W×D) Internal Space: 19” 27U. |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. |
| Material | Galvanized steel, 1.2mm thick. |
| Structure | - Single wall, with insulation
- One front door and one rear door
- Anti-theft lock device
- Door stopper / wind lock is installed on the inside of the cabinet door
- Door with good sealing, waterproof and dustproof
- Include standard 19“ rack inside the cabinet, high compatibility.
- Equipped with cable manager
- Cable inlets at the bottom of cabinet
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification |
| Color | Light grey |
| Ingress Protection | IP55 |
| Working Temperature | -40°C～+75°C |
| Cooling Method | Air Conditioner | Cooling Capacity: 1.5KW Power Supply: 220VAC, 50Hz |
| Fan | -48VDC, temperature adjustable |
| Power Supply | PDU | Grade B lightning proof; AC Input: 63A/2PX1; AC Output: 16A/1PX4; DC Output: 16A/1PX4. PDU can be custom made |
| Monitoring | Environment Monitoring Unit | -48VDC Communication port: SNMP |
| Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| Shock Sensor | Monitor vibration of cabinet and provide real time alarm. |
| Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| Other | Illumination | LED light, -48VDC |

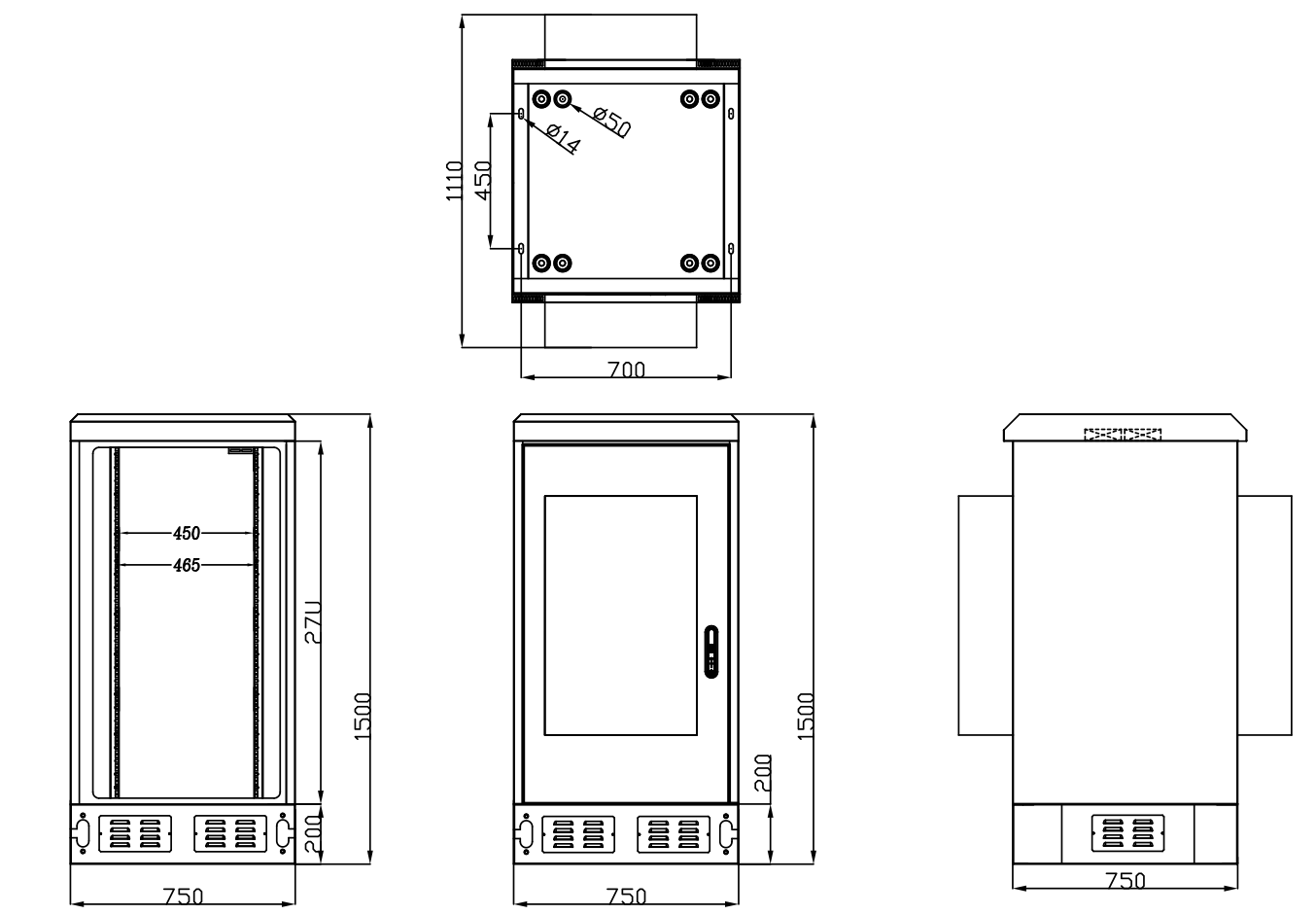

Cabinet Dimension
Cabinet Picture
Air Conditioner Details
Environment monitoring unit and power distribution unit
Factory
