Two Door 16U IP65 Outdoor Telecom Cabinet
Floor Mount With Air Conditioner For Cooling
Model: ET6565100-EQB
1. Application
Expanding the network edge means deploying IT infrastructure in remote locations with uncertain access and edge computing power management. Make the most of our decades of experience in managing remote locations globally and designing extensive outdoor enclosure offerings, which not only protect your vital electronic equipment from vandalism and environmental damage, but it also ensures it runs in optimal conditions for peak performance levels. Contact our experts and start taking your network edge at the next level.
An integrated outdoor telecom cabinet is designed to ensure environmental stability for sophisticated electronic equipment, mainly applied in telecom industry.
2. Features
• 16U floor mount rack cabinet with 19inch rail.
• One front door and one rear door, easy for access anTd maintenance.
• Outdoor floor data cabinet to house telecoms CATV or CCV equipment.
• Outdoor polyester powder coating, anti-corrosion painting.
• Door mounted air conditioner for cooling. Heater optional.
• Floor mounting plinth is included.
• Perfect floor or roof mount external data cabinet, providing IP65 protection against dust and water ingress.
• LED lamp installed on cabinet inside top, for illumination.
• Door switch installed on cabinet door frame for open door alarm.
• Cable inlets at cabinet bottom.
3. Specifications
| Item | Type | Technical Parameter |
| Outdoor Cabinet | External Dimension | H×W×D 1000×650×650mm |
| Inner Structure | 1 compartment: 16U standard 19” rail, for installing 19” telecom equipments. |
| Protection | IP65, outdoor application |
| Cabinet Installation Method | Floor installed |
| Door | One front door and one back door, totally two doors, easy for access and maintenance. |
| Lock | Customized anti-theft lock both on front door and rear door. (Other options: three point lock system) |
| Material | Galvanized steel, single wall |
| Thermal Insulation | 20mm PEF |
| Grounding | Copper grounding bar |
| Coating | Outdoor polyester powder coating, corrosion resistant |
| Color | RAL7032, grey |
| Cooling | Air Conditioner | Input Voltage: 220VAC 50Hz. Cooling Capacity: 500W; Installed on front door. |
| Illumination | LED Lamp | 48VDC LED lamp |
| Power Consumption | Cabinet Power Consumption | < 285W ( the power consumption generated by Air conditioner and LED) |
| Weight | Cabinet Weight | 94kg (without wooden case package) |
| Working Temperature | Temperature Range | -40°C ~ +55°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |

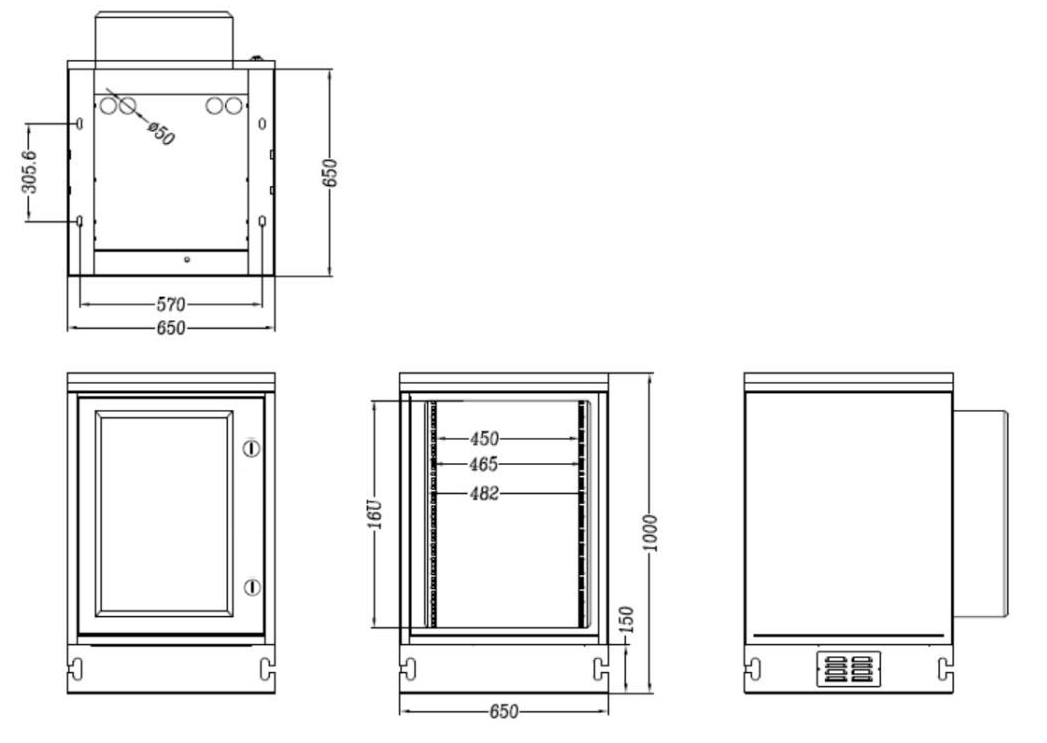

4. Cabinet Drawing
External Dimension H×W×D 1000×650×650mm(19”,16U).

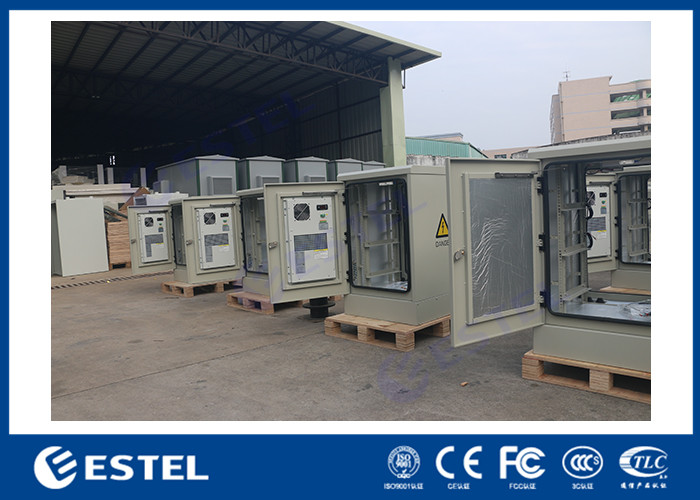

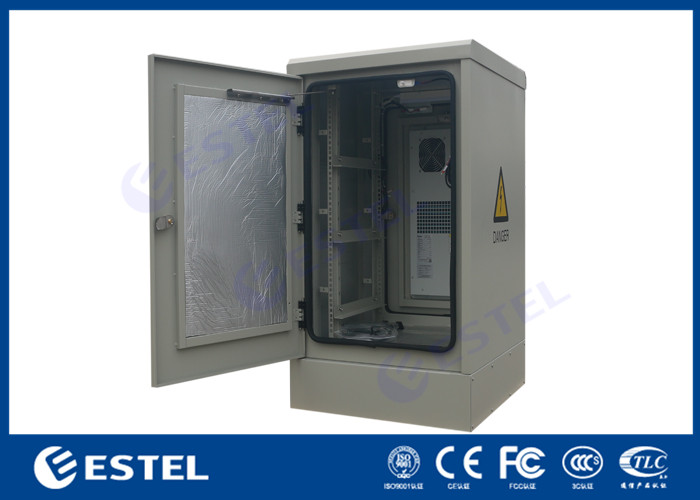

5. Pictures
