Brand Name : ESTEL
Model Number : ET9090210-UP10
Certification : ISO9001
Place of Origin : China
MOQ : 1PC
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 1800PCS per month
Delivery Time : 15 to 20 days
Packaging Details : Wooden Case with Pallet
External Dimension : W×D×H 900×900×2100mm
Material : Galvanized steel, single wall with heat insulation
Coating : Polyester powder coating
Internal space : 24U 19” rack + 2 layer battery shelf(each shelf 8 battery)
IP Level : IP55
Operating temperature : - 40℃~+75℃
Cooling method : AC220V 50Hz 1500W air conditioner and fan
Lifting hook : 4 pcs hooks on the base
Lock : Anti-theft three-point locking system
Hinge : Inner hinge
Self Cooling Anti Theft Anti-Corrosion 19" Rack Outdoor Telecom Cabinet With Air-Conditioner
1. Applications
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2. Overview
ET9090210-UP10 is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. battery and 24U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipments at the same time.
3. Specifications
Configuration | Item | Technical Parameter |
Cabinet | Model | ET9090210-UP10 |
Protection Level | IP55 | |
External Dimension | H2100mm×W900mm×D900mm | |
Internal Space | 24U 19” rack + 2 layer battery shelf(each shelf 4 battery) | |
Material | Galvanized steel, 1.2mm thickness, single wall Thickness of bearing parts: 2.0mm | |
Insulation | 20mm PEF | |
Coating | Polyester powder coating | |
Color | RAL7035 | |
Lock | Anti-theft three-point locking system | |
Hinge | Inner hinge | |
Installation Mode | Floor mounted | |
Cable Routing | Cable in and out from the bottom of cabinet | |
Maintenance | One front door, front maintenance | |
Cooling | Air Conditioner | AC220V 50Hz 1500W |
Fan | Two DC48V fans with one temperature controller | |
Power Distribution Unit | Voltage | 200VAC~240VAC |
Input | 2P 63A×1, SPD 60KA | |
Output | 1P 32A×2,1P 16A×4 | |
Illumination | 48VDC LED lamp with lamp switch | |
Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
Storage Temperature | -40℃~+70℃ | |
Working Humidity | 5%~95%(No condensation) | |
Working Altitude | 0~4000 meters |
4. Advantages
(1) High compatibility, high integration, supporting multiple equipments, good appearance
(2) Standard compartment temperature control , energy saving and high efficiency
(3) Flexible structure, flexible assembly
(4) Can be installed in any difficult places include the top of mountain and the roof of buildings.
(5) Theft-proof, wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
(6) All the screws are built in cabinet, enhance security.
(7) Using heat insulation can effectively prevent heat from entering.

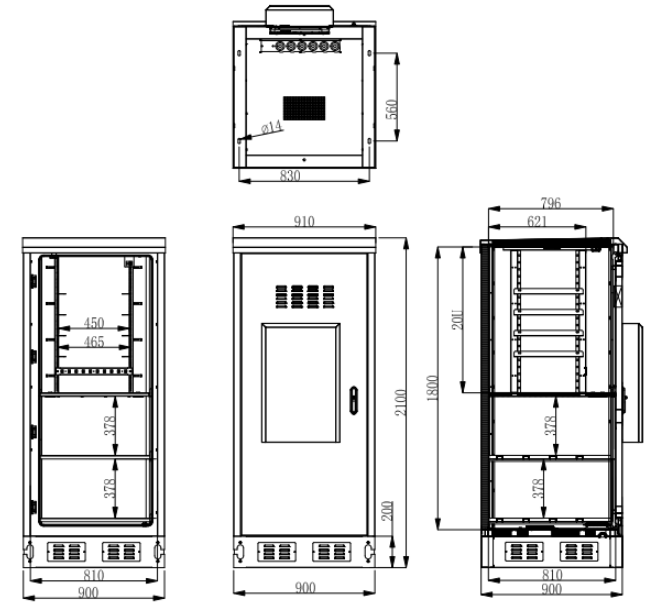

5. Dimension Diagram

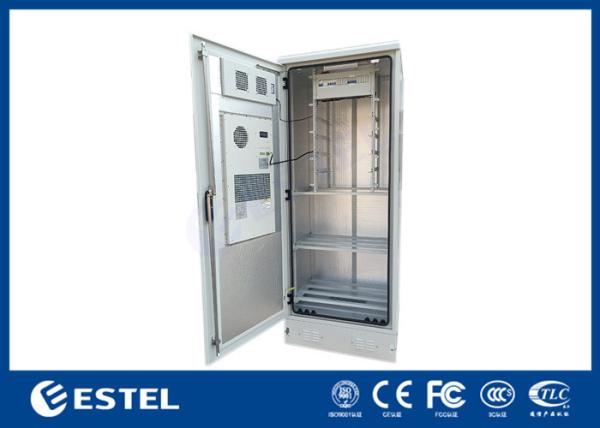

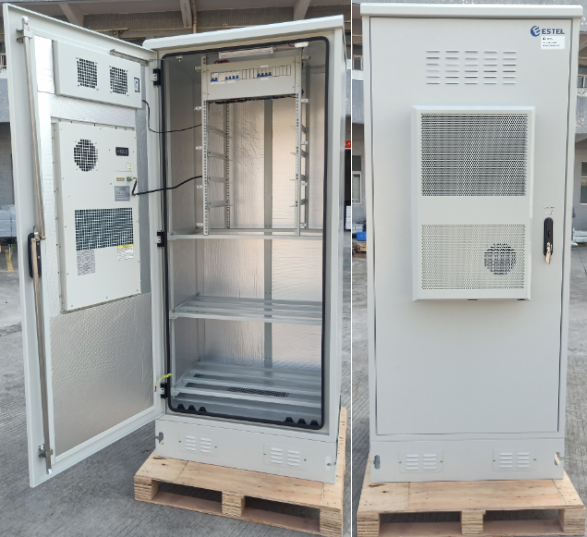

6. Cabinet Picture

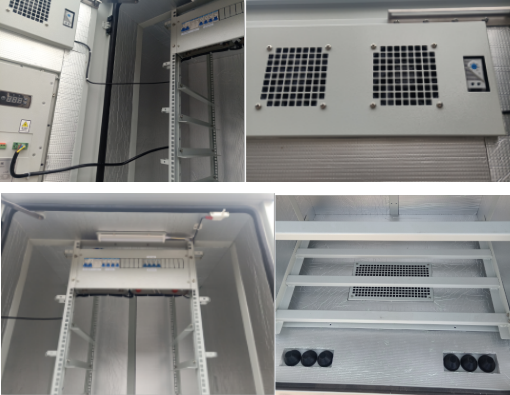

7. Details
![]() |
