20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System

Brand Name : ESTEL

Model Number : ET111122656511520

Certification : ISO9001

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000PCS per month

Delivery Time : 15 to 20 days

Packaging Details : Wooden Case with Pallet

Size : H1150mm×W650mm×D650mm

Space : 20U 19" Rack

Material : Sanwich structure panel, galvanized steel,

Finish : Anti-corrosion Powder Coating

IP Grade : IP55

Cooling System : AC 500W 220VAC 50Hz Air Conditioner

Insulation : PEF

protection level : IP55

color : RAL7035

Contact Now

20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet Emerson Power System Monitoring Unit

20U 19" Thermostatic Sandwich Outdoor Telecom Cabinet With Emerson Power System, Monitoring Unit



Technical Parameters:



Configuration Configuration Technical Parameter
Cabinet Model ET6565115-EQ
Protection Level IP55
External Dimension H1150mm×W650mm×D650mm
Internal Dimension 19inch 20U
Material

Galvanized steel, 1.2mm thickness, single wall.

Thickness of bearing parts: 2.0mm


Insulation PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door,front maintenance.
Cooling DC Air conditioner 500W 220VAC 50Hz
Others 220VAC 50Hz LED lamp
The entrance guard switch
Environment Working Temperature -40℃~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters





Sanwich structure panel, galvanized steel, double wall with heat insulation



Cabinet installation

Unpacking

Outdoor integrated cabinets are generally packed in wooden cases. When disassembling the package, take care to avoid damage to the cabinet.



20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System



Cabinet base

The size of the base of the cabinet and the fixing hole of the base expansion bolt are shown in Figure .

20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System





2.3 Cabinet fixing

( 1 ) According to the hole position map or the scribe template of the cabinet base, the base expansion bolt hole of the cabinet is punched with a hammer drill in advance, and the diameter of the hole is referenced to the size of the expansion bolt;

( 2 ) First, fix the leftmost or rightmost first cabinet with expansion bolts, place the remaining cabinets one by one, and finally fix the cabinets with the expansion bolts.

( 3 ) If you need to seal the base of the cabinet, use the base sealing plate (optional) to seal the notch and hole around the base. The mounting screws are the M5 stainless steel screws in the cabinet attachment (see Figure 5 ).

Note: If the cement foundation is not flat, it is recommended to use a gasket or spacer to level the base of the cabinet.

20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System

                                                                        Figure 5



Note: When crossing the wire loop, first cut the cross with a utility knife. After the cable is connected, seal the remaining gap on the wire loop with the sealing glue attached to the cabinet.,As shown below;



20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System

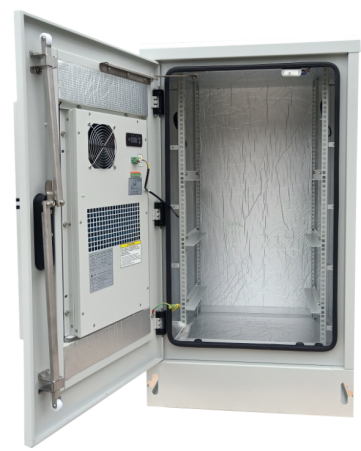

image:

20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System   20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System

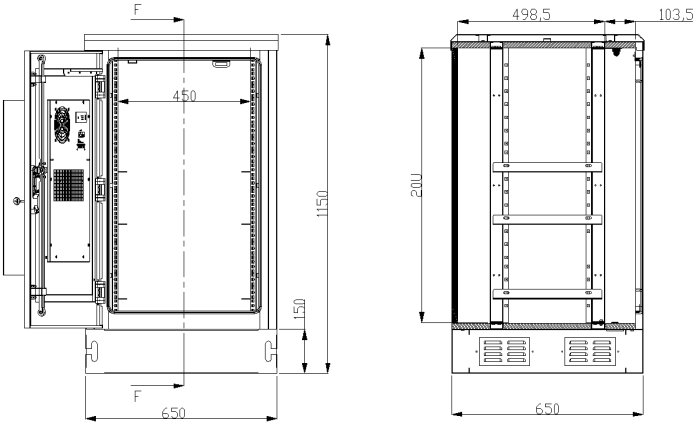

Diagram:

20U 19" Thermostatic Sandwich Outdoor Electrical Cabinet With Emerson Power System
