19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet

Brand Name : ESTEL

Model Number : ET111322909021040

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Cabinet External Size : W×D×H 900×900×2100mm

Protection Level : IP55

Modle : ET111322909021040

19 Inch Rack : 40U

Cooling system : air conditioner or fans,Heat exchanger,500W 1000W 1500W 2000W compressed air conditioner,Door Installed Heat exchanger / AC / TEC

Color : RAL7035 grey

Door : One front door

Integrated Accessories : PDU, EMS

Material : Galvanized steel, single wall with insulation

Cabinet Lock : Anti-theft three point lock(support padlock)

Surface Treatment : Outdoor anticorrosion powder coating

Type : Distribution Box,Network Cabinet,Control Box,Telecom Outdoor Cabinet,Outdoor cabinet for BTS

Application : Telecommunication,base station,Electronic ect,Outdoor Electronic Equipment,FTTX Network/Telecom

Contact Now

19 Inch Rack Cabinet 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet



1. Outdoor Telecom Cabinet Features



Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.

• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.

• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.



2. Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 900×900×2100mm
Layout 1 compartment
Equipment Installation Method 19” rack, 40U,the bottom Cabin is for Battery
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall thickness1.2mm
Heat Insulation 20mm PEF
Ingress Protection IP55
Temperature Control Cooling Air conditioner 48VDC 1500W
Lighting LED lamp LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 × (1±5%) W/m2

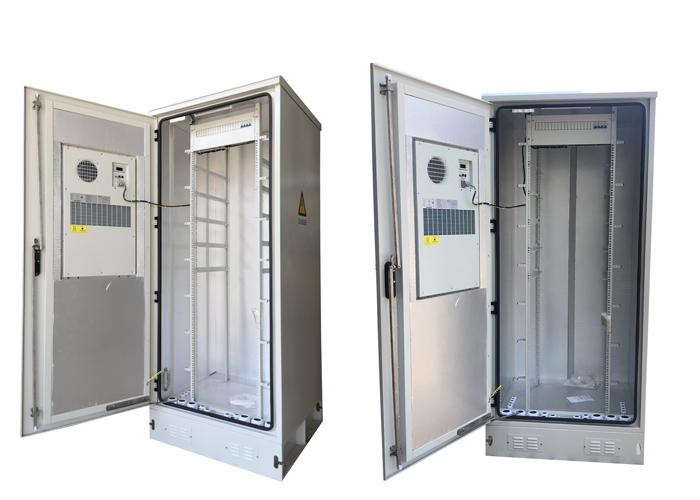

3. Cabinet Pictures

19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet





4.IP55/IP65



IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available

19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet

19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet









5. Applications of Outdoor Telecom Cabinet





19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet





















































































6. Packing and Delivery



(1)Packaging:Wooden case with pallets



(2) Delivery:



  By Express:Door to door, very convenient, don't need to clearance or pick-up



  By Air:Airport to airport, you need to do the customs clearance and pick up the goods at your local airport



  By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port





7.Why Choose Us



Q1: Are you a Manufacturer or trading company?
A: We are a Professional Outdoor Cabinet Manufacturer .Our Factory include 8 business sections. Outdoor telecom cabinet, Air conditioner, Power supply, Intelligent Power Distribution. Battery, IOT,

Q2: Do you have any MOQ limit for outdoor cabinet ?
A: Can be offer 1 pc sample that you feel our high quality and excell service.

Q3: What is the leading time?
A: Sample order is 1-2 weeks, bulk order is about 25 days after receive the payment.

Q4.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.

Q5: Can you provide OEM ODM products with my brand and logo?
A: Yes, OEM & ODM is available..

Q6: Can I visit your company and factory in China?
A: Welcom to vist our factory anytime.





8. Certification



19 Inch Rack 40U Outdoor Equipment Enclosure IP55 Telecommunication Cabinet
