Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : TC06-50JFH/01

Certification : ISO9001, CE, 3C, FCC, ROHS, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Mounting method : Door mount/ side mount

Type : Outdoor Cabinet Air Conditioner

Input voltage range : AC220V~240V/50Hz

Cooling capacity L35/L35 : 500W

Rated Refrigerating input power : 198W

Rated Refrigerating current : 0.9A

Noise : ≤62dB

Ingress protection : IP55

MTBF : 70000h

Refrigerant : R134a

Contact Now

Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System



Low Noise Intelligent AC220V Outdoor Cabinet Air Conditioning Full Automation Enclosure Cooling System




1. Enclosure Cooling System introduction

TC06-50JFH/01 Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.


2. System Principle Diagram



Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System


3. Technical Parameters of Enclosure Cooling System


Environmental Performance

working environmental temperature

-20°C ~ 55°C

storage temperature

-40°C ~ 70°C

working humidity

≤95%

Thermal Performance

rated cooling capacity

550W(L35 L35)
500W(L25 L35)

heating input power

300W/500W(optional)


Electrical Performance

rated input current

1.0A(L35 L35)
0.9A(L25 L35)

rated input power

220W(L35 L35)
198W(L25 L35)

input voltage

AC220V~240V/50Hz

Noise

≤62dB

Reliability

MTBF

70000h

Refrigerant

R134a








4. Air conditioner size


Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System



5. Features



  • Strong adaptability

  • High intelligence

  • High precision

  • High reliability

  • Low noise

  • Low energy consumption

  • With 4 way switching value detection

  • With 1 way room air conditioner control

  • Voltage input range: 220VAC±15% 50Hz

  • With dry contact alarm output




6. Electrical Wiring Diagram



Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System





Wiring Ports:
L N PE : power supply port (voltage input: 220VAC±15% 50Hz)
F+ F- : direct ventilation output port
AL1 AL2: general alarm output port
A+ B- SGND : RS485 communication port
N : not connected pin

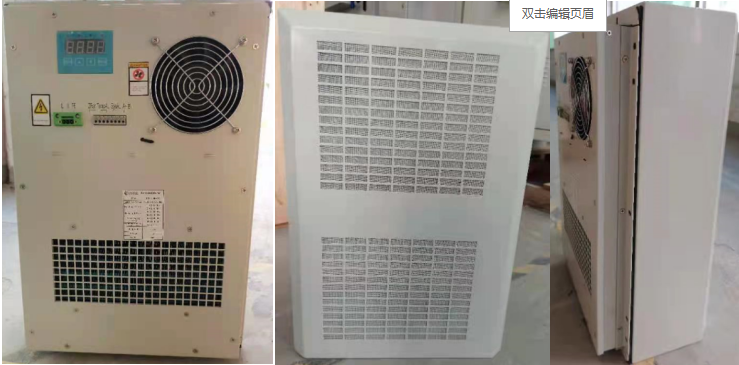

7. Air conditioner picture




Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System




8. Application case




Intelligent AC220V Outdoor Enclosure Air Conditioner Cooling System
