IP55 19 inch Rail single wall Galvanized steel floor mounted cabinet with PDU
1. Cabinet Technical Parameter:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET111722757517532 |
| Protection Level | IP55 |
| External Dimension | H1750mm×W750mm×D750mm ( can be customized ) |
| Internal Dimension | 19 inch rail, 32U |
| Material | Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
| Insulation | PEF |
| Coating | Polyester powder coating |
| Color | RAL7035 |
| Lock | Anti-theft three-point locking system |
| Hinge | Inner hinge |
| Installation Options | Floor mounted, include wheels |
| Cable Routing | Cable in and out from the bottom of cabinet |
| Maintenance | One front door and one rear door |
| Cooling | Air conditioner | 220VAC 1500W |
| auxiliary fan | 12038 48VDC |

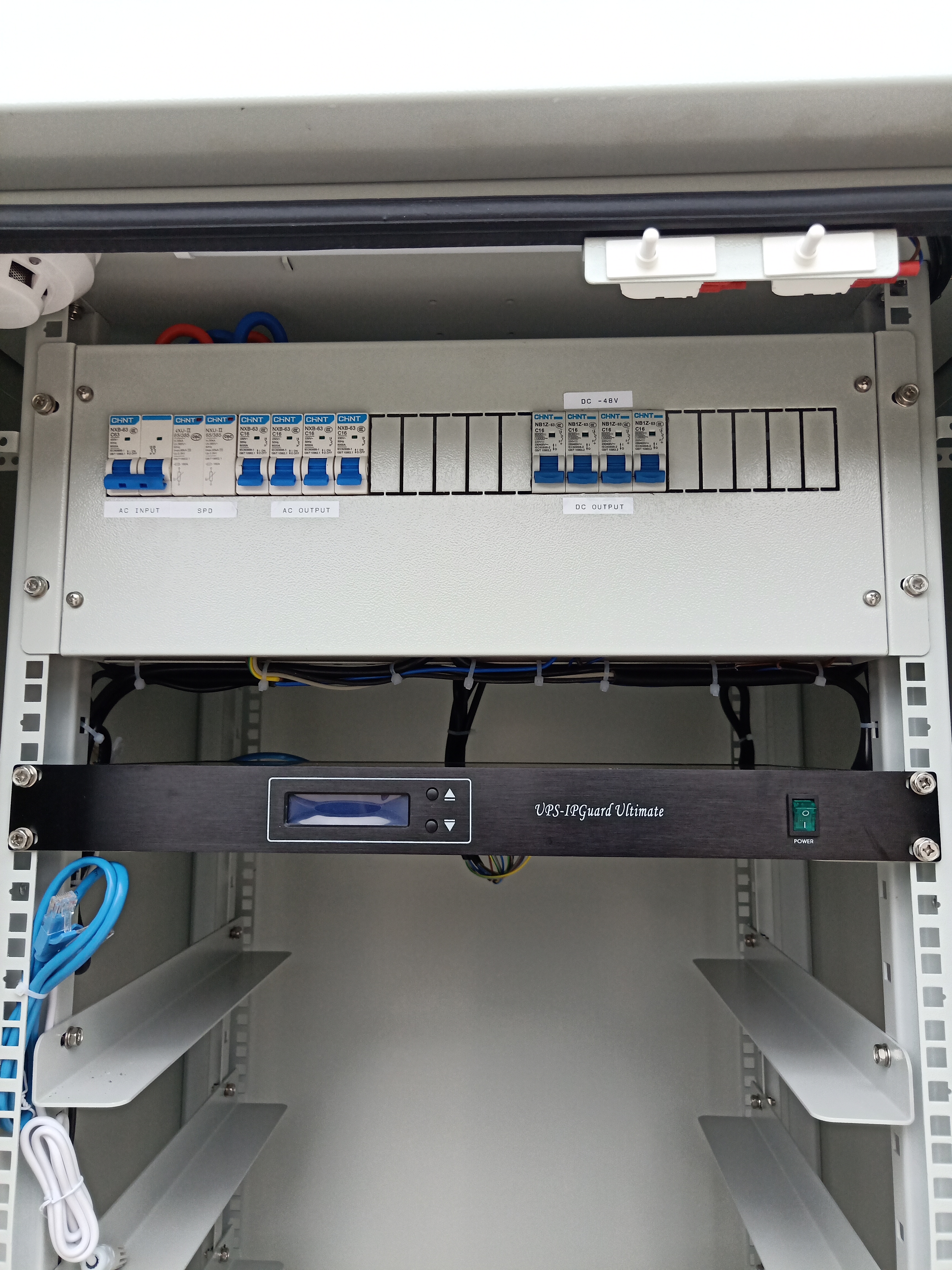

| Power distribution unit | Input | AC input : 63A/2P ×1;B level SPD,60KA |
| Output | AC output : 16A/1P×4; DC output : 16A/1P×4. |
| sensors | Door sensor, water sensor, temperature and humidity sensor, smoke sensor |
| Environment Monitoring Unit | 19 inch installation, 1U high, 220VAC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
| Others | Illumination | LED lamp: 220VAC 50Hz |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ |
| Working Humidity | 5%~95%(No condensation) |
| Working Altitude | 0~4000 meters |
2. Cabinet Protection Level:
IP54/IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
3.Cabinet feature:
The outdoor telecom cabinet ET111722757517532 offers standard 19” racking rails, is a new design for telecom projects and surveillance projects., an Outdoor cabinet is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.
4.Cabinet Advantages:
High integrated
(1)High compatibility, high integration
Supporting multiple equipments, good appearance
(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
One compartment/two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof

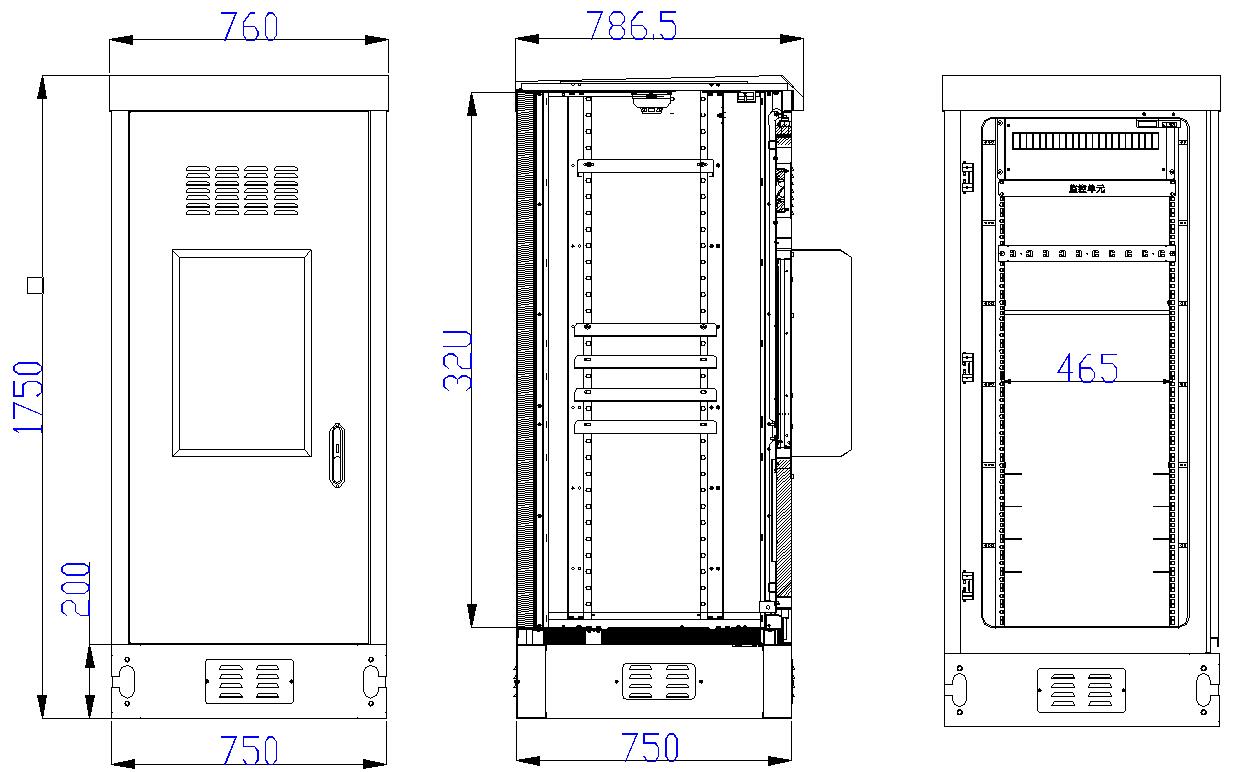

5. Cabinet Diagram:
6.Cabinet Mounting Type
l · Wall mounting type
l · Pole mounting type
l · Floor standing by base
7.Grounding Protection
The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar

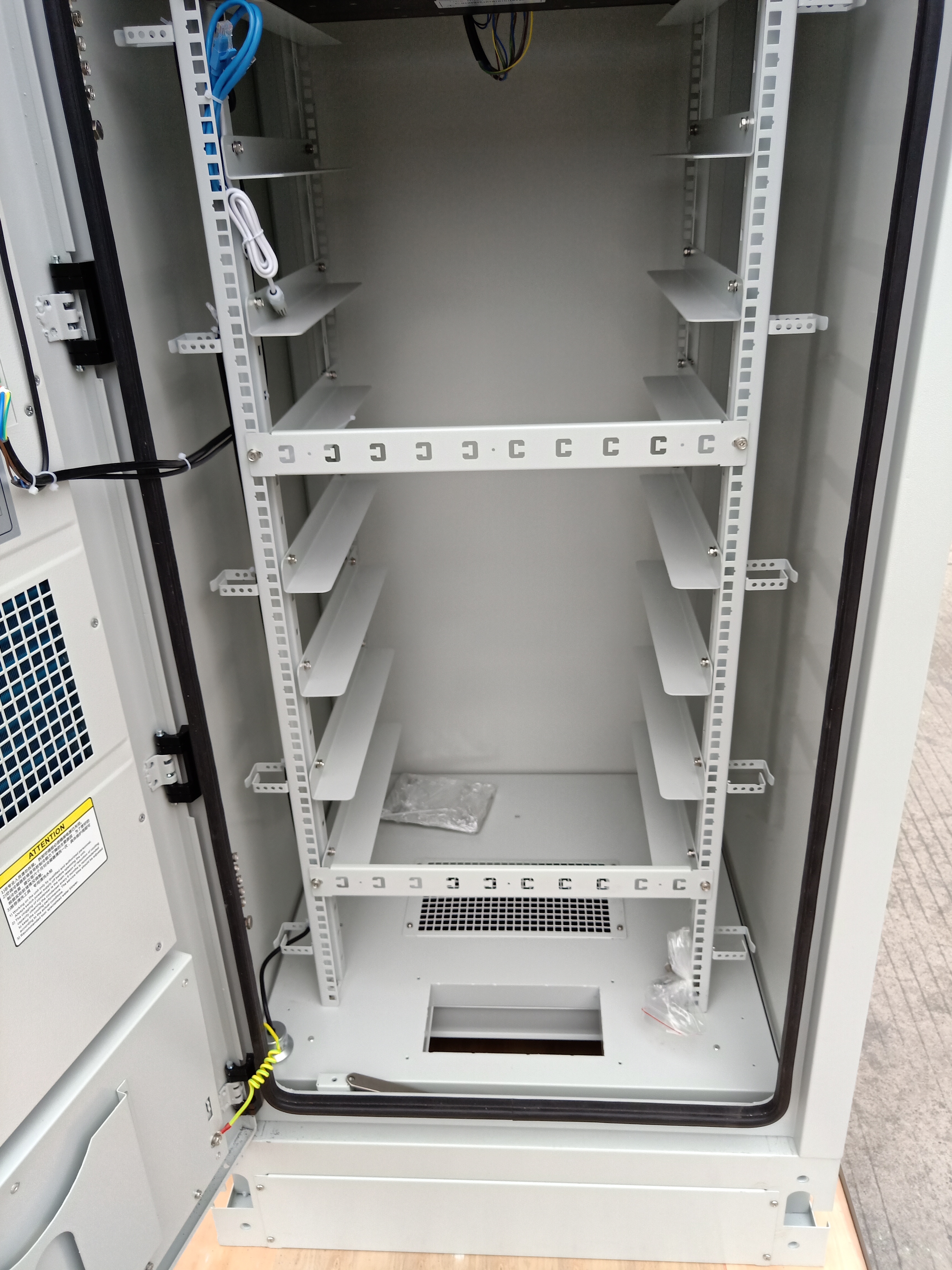

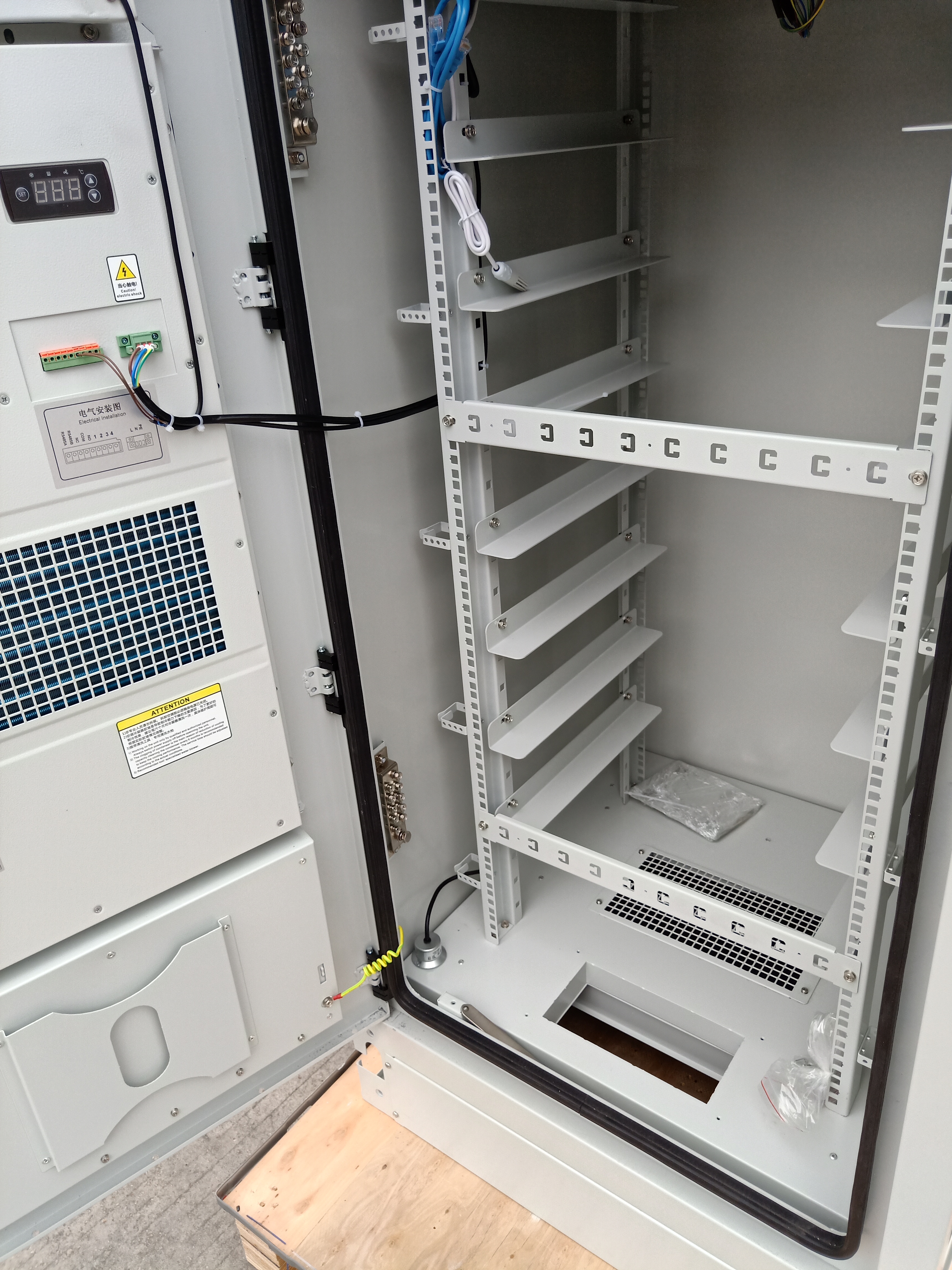

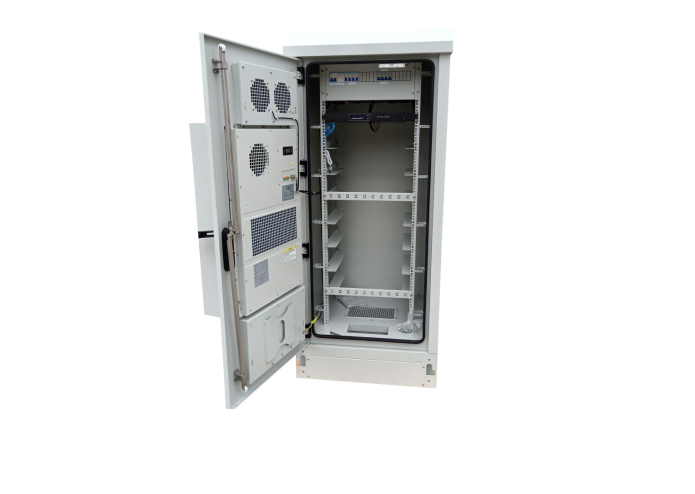

8. Cabinet pictures:
