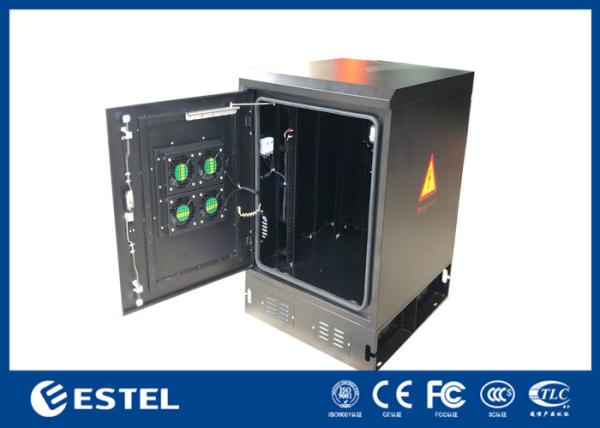

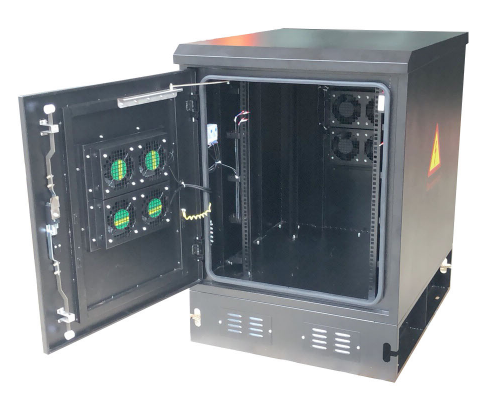

Waterproof Dustproof 16U Black Powder Coating Single Wall Outdoor Telecom Cabinet With 8 Fans Ventilation
Summary
● The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Feature
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7585105-EQ |
| Size | External Size: 750mm×850mm×1050mm(W×D×H) |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and cabinet base. The installation method is floor mounted. |
| Material | Galvanized steel, single wall, 1.5mm thick |
| Structure | - Single wall
- One front door, hidden zinc alloy hinge
- Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device
- Door stopper / wind lock is installed on the inside of the cabinet door
- Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
- The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.
- Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.
- Equipped with cable manager
- Cable inlets at the bottom of cabinet
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification |
| Color | Outdoor polyester black powder coating or custom made |
| Ingress Protection | IP55 or custom made |
| Working Temperature | -40°C～+75°C |
| Cooling Method | Compressor Air Conditioner | / |
| Heat Exchanger | / |
| TEC Air Conditioner | / |
| Fan | AC110V 60Hz, 8pcs. Including temperature adjustable controller. |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | / |
| Vibration Sensor | / |
| Water Sensor | / |
| Door Sensor | / |
| Temperature & Humidity Sensor | / |
| Other | / |
| Other | Illumination | / |
Dimension Diagram

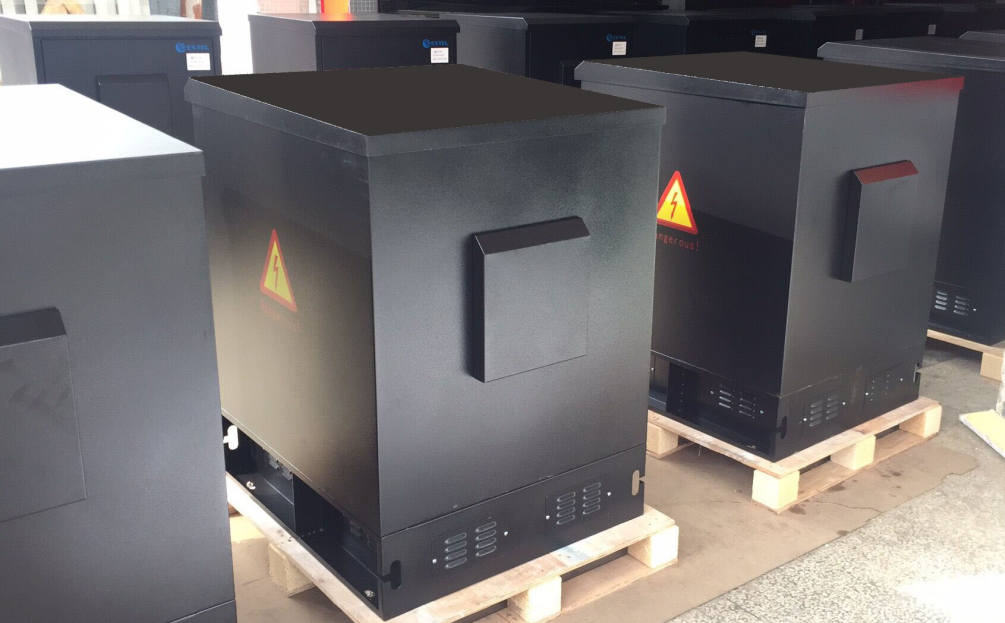

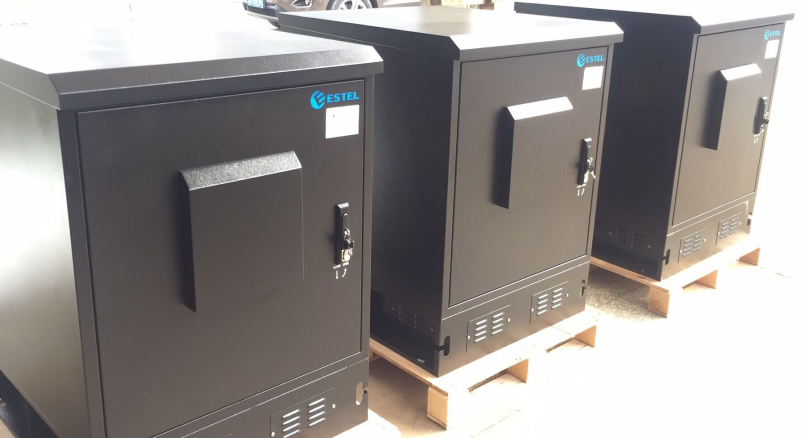

Pictures:
Ventilation working principle

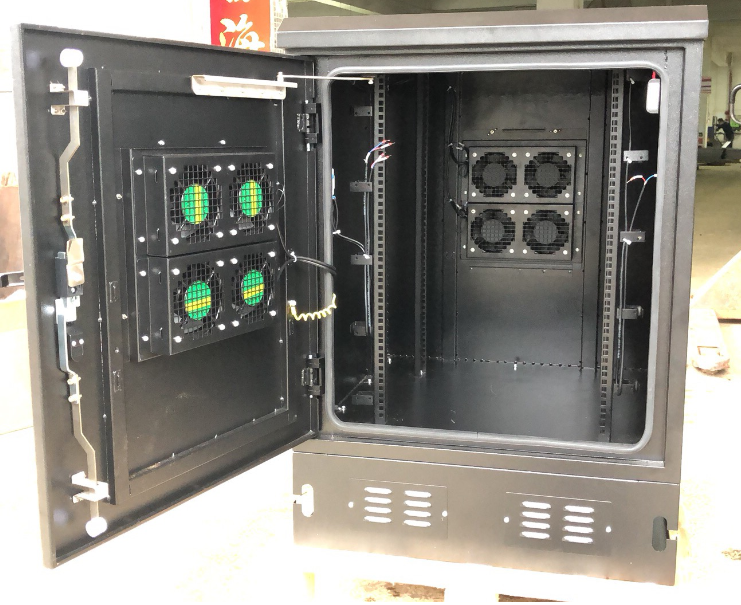

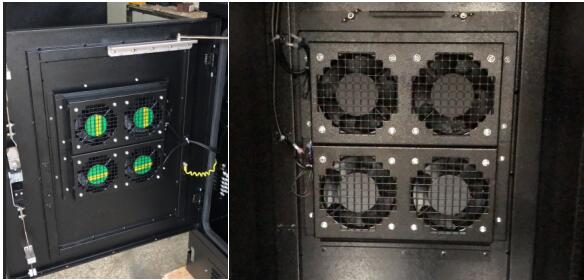

8 pcs fans, 4 pcs is on the front door, 4 pcs on the back wall.
Divided to 2 groups: front 2 pcs (air inlet) and back 2 pcs(air outlet) is a group.
front the other 2 pcs (air inlet) and back the other 2 pcs(air outlet) is another group.
Situation1: When inside cabinet temperature is low(lower than a certain temperature), fan group 1 work; when inside cabinet temperature is high(higher than a certain temperature), fan group 2 start to work together.
Situation2: under normal situation, fan group 1 work ; when fan group 1 fails, temperature becomes high, fan group 2 will work as backup.

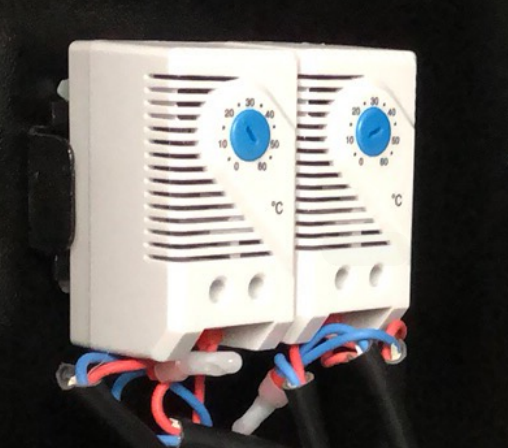

For each fan group, we will include one temperature controller used for setting the fan starting temperature.

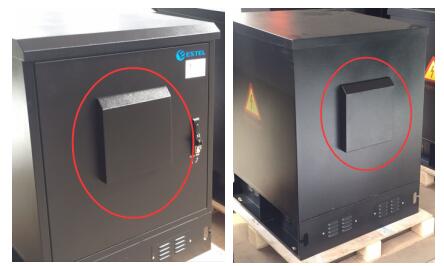

Fan inlcude outer cover for waterproof and dustproof.
Each group of fan includes one temperature sdjustable controller, totally 2.
Packing and Shipping
