Standard 19 Inch Rack 15U Floor Mount Outdoor Equipment Cabinet Customized Logo
1. Introduction Of 15U Outdoor Equipment Cabinet
Outdoor Telecom Combined with concealed security hinges and a 3 point locking mechanism to provide the ultimate protection.Easy placement on location. The internal of the cabinet has 1 compartment. The cabinets provide a dust and water ingress rating of IP55 or better. This cabinets are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water.
2. Main Features Of 15U Equipment Cabinet
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: Air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
3. Specification Of Equipment Cabinet
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 600×800×1050mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack ,15U |
| Door | With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel |
| Structure | Assembled |
| Mounting type | Floor mounting type |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Air conditioner Power supply AC220V 50Hz Cooling Capacity:600W |
| Lighting | LED lamp | AC220V 50Hz with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | | Storage Temperature: -50°C ~ + 70°C |
| | | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | (1) External Dimension:W×D×H 600×800×1050mm (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Air conditioner | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | LED Lamp | 1 | PC | AC220V 50Hz |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | Package | 1 | PC | Wooden Case |
5. Working condition
Item Technical Parameter
Working temperature range: -40℃~ +60℃
Sorage temperature range: -50℃~ +70℃
Transport temperature range: -50℃~ +70℃
Relative Humidity 5%-- 100%
Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)
Radiation Intensity 1400* (1±5%) W/m2
6. Mounting And Fastening
· Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
· Door hings use inner hinge mode.

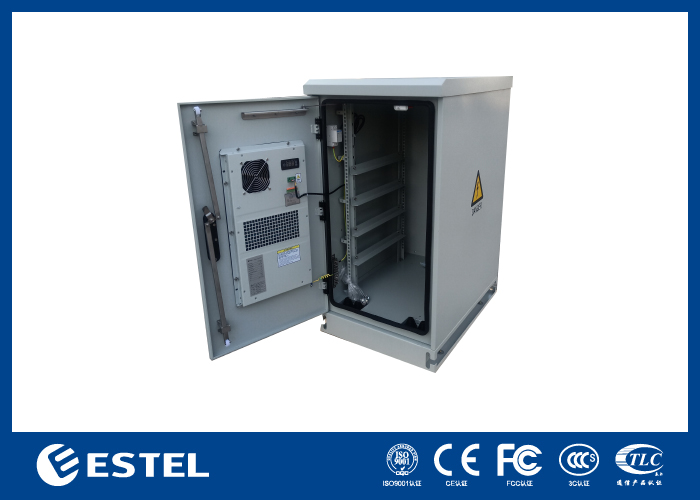

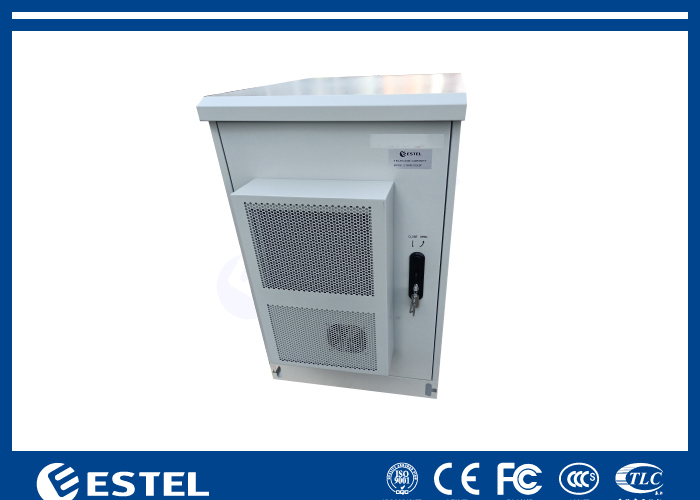

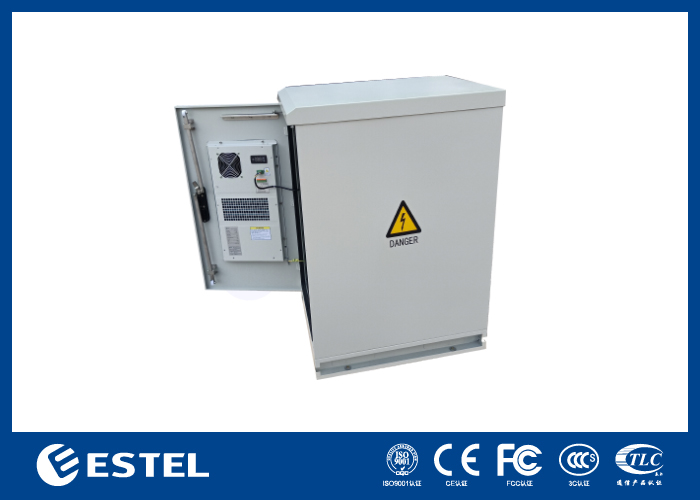

7. Cabinet Picture
8. Theft Proof Design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
9. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
