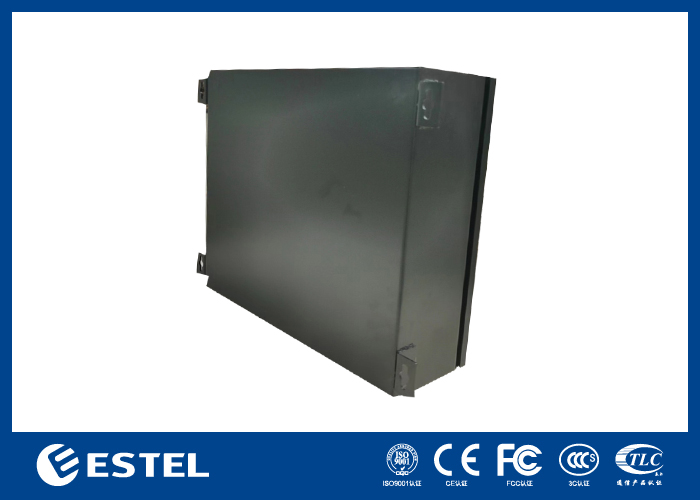

Galvanized Steel Outdoor Wall Mounted Cabinet Outdoor Telecom Cabinet
1.Wall mounted Cabinet Introduction
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2.Cabinet Features
Compact and light single-walled design
Highest protection against corrosion
Features an integrated roof
Thickness of plate: 2.0mm
with heat insulation ,Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures
Fully welded design, supplied complete, no assembly required
Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
3. Cabinet Instructions
This cabinet is 500mm High and 500mm Wide and 150mm Deep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.
4.Optional Accessories :
● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance
●Sensors: can monitor internal temperature,humidity,fire/smoke,door opened state.
● Light: one piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
5.Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET501550W |
| Protection Level | IP66 |
| External Dimension | H500mm×W500mm×D150mm |
| Internal Dimension | one compartment with mounting plate |
| Material | thickness of plate: 2.0mm
without PEF heat insulation |
| Insulation | Optional |
| Coating | Polyester powder coating |
| Color | Black |
| Door | One front door fixing with four M8 screw |
| Hinge | Inner hinge |
| Installation Options | Wall mounted |
| Cable Routing | Cable in and out from the bottom of cabinet |
| Cooling | DC air conditioner | Optional |
Power Distribution Unit
(customized) | AC Input:1×2P/63A
AC SPD:SPD40/60KA
AC Output:5×1P/16A
DC Output:1×1P/32A,2×1P/16A,2×1P/6A |
| Sensors(Optional) | 2pcs × Door sensor, 1pc ×temperature and humidity sensor |
| Others(Optional) | 48VDC LED lamp for illumination. 2pcs |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ |
| Working Humidity | 5%~95%(No condensation) |
| Working Altitude | 0~4000 meters |

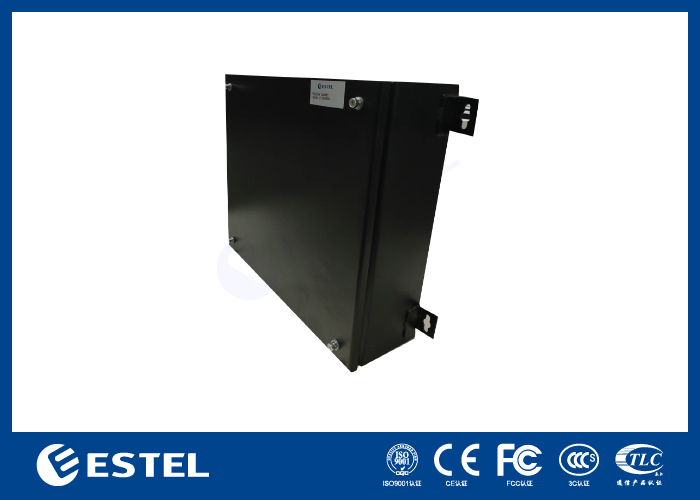

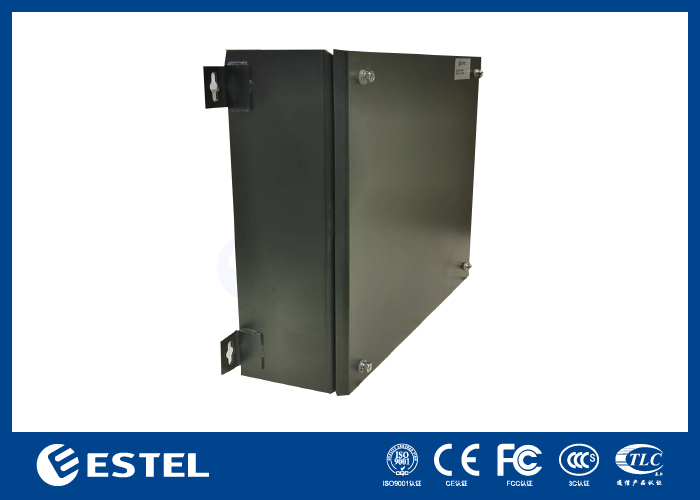

6. Cabinet Introduction
The cabinet includes one front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door fixing with four M8 screw.
7. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
8. Technical Specs
(1) Applicable environment conditions:
Operating temperature: -40°C ~ + 55°C
Storage temperature: -50°C ~ + 70°C
Transport temperature: -50°C ~ + 70°C
Relative humidity (RH): 5%~99%
Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
- Material: good quality galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥600kg
- Ingress protection: IP66
- Flame retardance: comply with GB5169.7 test A
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

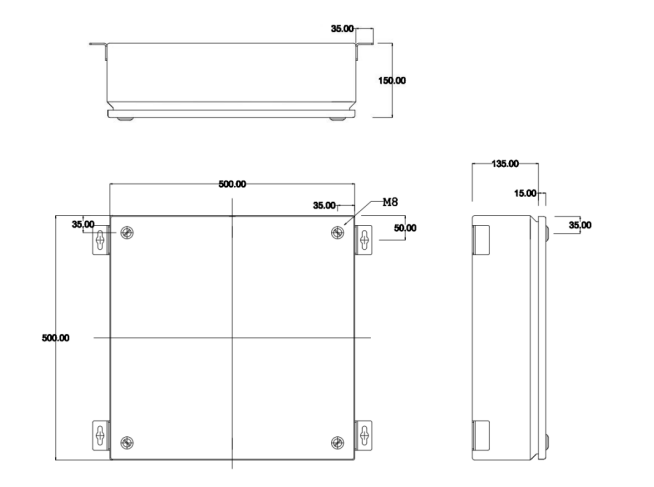

9.Dimension Diagram
