42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment

Product Categories
Tianjin Estel Electronic Science and Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment

Brand Name : ESTEL

Model Number : ET9090215A-42U

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W*D*H 900*900*2100mm

Model : ET9090215A-42U

Material : Galvanized, single wall with insulation

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Air Conditioner and fan

Protection Level : IP55

Contact Now

42U IP55 Anti corrosion outdoor Equipment Cabinet with upper and lower compartment

1. Cabinet Specifications



External Size W*D*H 900*900*2150mm.

Material

Galvanized steel,sandwich structure panel,with thermal insulation.


Cabinet Layout

 Two compartment for installing 19” equipment

Component

The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted.
Protection Level

IP55
Cabinet Inlets From cabinet bottom
Illumination/lighting AC220V LED lamp
Heat Insulation PEF

Grounding Protection

 Copper bar

Color

 Light Grey

Air conditioner

Cooling Capacity:1500W
Power Supply: 220VAC,50Hz

Fan

 220VAC,temperature adjustable

Accessories Options

PDU, Environment monitoring system

Alarm sensors

The door sensor, water sensor, smoke sensor, temperature and humidity sensor
Flame retardant Comply with GB5169.7 test A
Door type With 2 front door

Cabinet Lock

 Anti-theft three point lock(support padlock)
Package Wooden case with pallets
Certificates CE




2. Cabinet Application

Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Cooling System Pictures


  • Cabinet Cooling System
  • Outdoor telecom cabinet cooling is an important aspect of maintaining the optimal temperature inside the cabinet to ensure the proper functioning of telecom equipment. There are several cooling methods that can be used, such as:



  • Air Conditioning: Installing an air conditioning unit inside the cabinet can help regulate the temperature and remove excess heat. It is important to choose an air conditioner that is specifically designed for outdoor use and can withstand harsh weather conditions.



  • Fans and Ventilation: Using fans and ventilation systems can help circulate air inside the cabinet and remove heat. This can be achieved through the use of exhaust fans, intake fans, or natural ventilation methods like louvers or vents.



  • Heat Exchangers: Heat exchangers are devices that transfer heat from the inside of the cabinet to the outside environment. They work by using a coolant or refrigerant to absorb heat from the cabinet and release it outside.



  • Passive Cooling: Passive cooling methods involve using materials or designs that naturally dissipate heat without the need for active cooling systems. This can include using heat-resistant materials, insulation, or reflective coatings to minimize heat absorption.


It is important to consider factors such as the size of the cabinet, the amount of heat generated by the equipment, and the environmental conditions when choosing the appropriate cooling method for



4. Cabinet Accessory List


No. Item Quantity Unit Specs
1. Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W*D*H 900*900*2150mm
(2) Two compartment: 19” rack, upper 22U, lower 20U
(3)With two front door, and three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with insulation
2.  Air Conditioner 1 Set Cooling capacity: 1500W, Power Supply: AC220V, 50Hz
3. Air Conditioner 1 Set Cooling capacity: 1000W, Power Supply: AC220V, 50Hz
4. Auxiliary Direct Ventilation Fans 2 PC AC220V,install on the top of the cabinet
5. Environment Monitoring Unit 1 Set 1U, AC220V, support SNMP communication
6. Water Sensor 1 PC
7. Smoke Sensor 1 PC
8. Temperature and Humidity Sensor 1 PC
9. Door Sensor 1 PC
10. LED Lamp 1 PC AC220V
11. Package 1 Set Wooden Case




5. Cabinet Door and Lock

The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

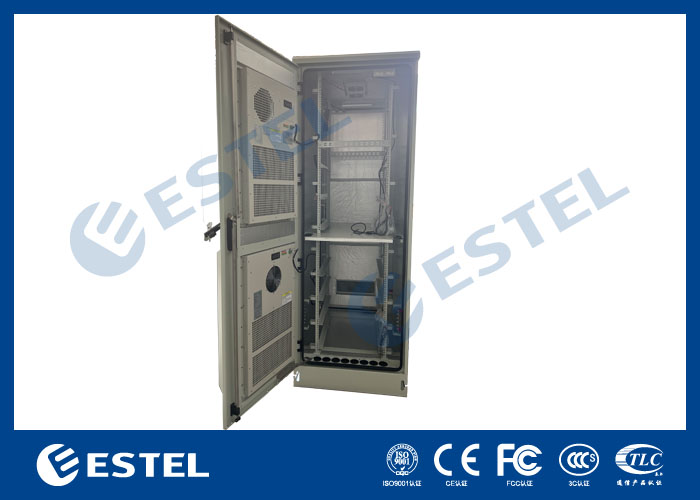

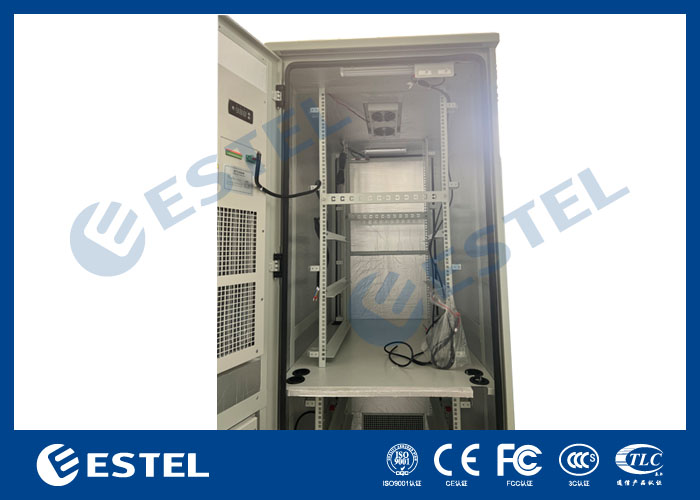

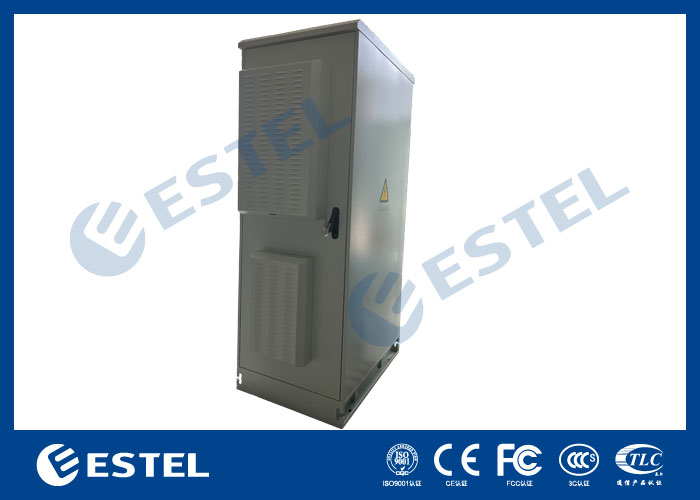

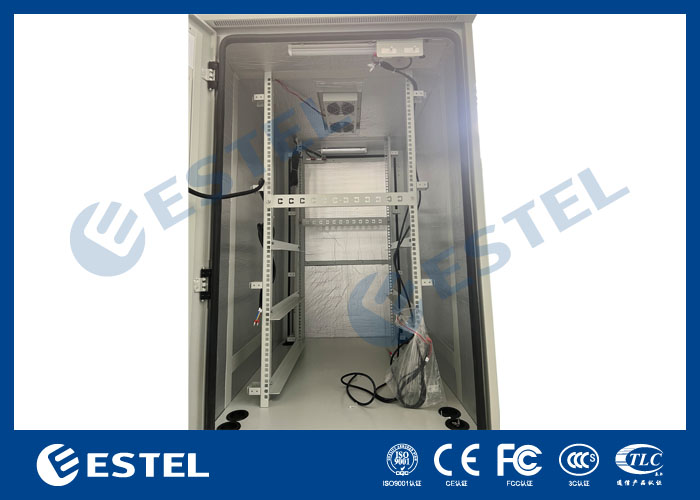

6. Cabinet pictures


42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
