500W DC Outdoor Telecom Cabinet Air Conditioner R134a Refrigerant CE Certified

Brand Name : ESTEL

Model Number : DC05HDNC1D

Certification : CCC, CE, UL, SONCAP, CB

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal, etc

Supply Ability : 15,000 sets per month

Delivery Time : 7-15 working days

Packaging Details : Carton + Foam + Wooden case

Cover Material : Galvanized Steel

External Dimensions (H x W x D) : 545×315×170mm

Weight : 15kg

Refrigerant : R134a

Heating Capacity : 500W

Mounting Method : Door Mounted

Application : Outdoor

Working Temperature Range : -40 to +55ºC

IP Protection Level : IP 55

Design lifetime : >10 years

Heater : Optional

RoHS2 Compliant : Yes

Noise Level : 60dB(A)

Contact Now

Product Description



DC Series Air Conditioner
The DC Air Conditioner series is specially designed for DC powered application, by maintaining certain temperature to ensure lifespan of device. DC series is well functioned, high reliable, and easily installation. It can work promptly after power connection, no need for complicated debugging.


DC05HDNC1D is a pure DC powered air conditioner, with worldwide application history
 Integrated design
 Door mounted, well match with cabinet
 Cooling capacity 520W(L35/L35)
 Working temperature range: -40℃ to +55℃ with heater
 Series product, cooling range: 300W ~ 5000W


Product Features
 Environmental friendly – R134a and RoHS compliant
 Energy saving
 Protection for high voltage
 LCD menu display, easily get data and alarm information
 Design lifetime >10 years
 Easy installation and minimum maintenance
 IP55 protection level
 Optional heater


Applications
 Outdoor Battery Cabinets
 Outdoor Radio Base Stations / Telecom Cabinets
 Outdoor Power Supply Cabinets
 Outdoor Gen-set Control Cabinets
 Outdoor Solar Powered Telecom Cabinets
 Outdoor Wind Power Control Cabinets



Technical Specifications
Dimensions, Weight & Mount

External Dimensions (H x W x D)
545×315×170mm
External Dimensions (H x W x D) With Flange
583×352×170mm
Weight
15 kg
Mounting Method
Door Mounted
Application
Outdoor
Environmental Protection & Performance

Working Temperature Range
-40 to +55ºC
Noise Level
60 dB(A)
IP Protection Level
IP 55
Refrigerant
R134a
RoHS2 Compliant
Yes
Cooling/Heating Capacity

Cooling Capacity@L25/L35
355W
Cooling Capacity@L35/L35
520W
Heating Capacity (Optional)
500W
Power Consumption

Power Consumption@L25/L35
150W
Power Consumption@L35/L35
160W
Current@L25/L35
3.20A
Current@L35/L35
3.34A
Airflow

Internal Airflow
150m3/h
Power Supply

Power Supply Range
-44~-58VDC
Rated operating voltage - Controller
-48VDC
Rated operating voltage - Cooling/Heating System
-48VDC
Max. Current
6.5A

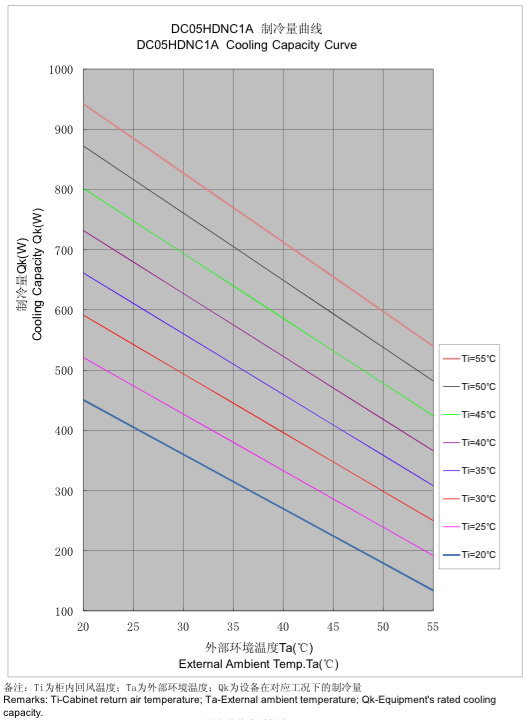

Cooling Capacity Curve

500W DC Outdoor Telecom Cabinet Air Conditioner R134a Refrigerant CE Certified



Cooling Capacity Curve

500W DC Outdoor Telecom Cabinet Air Conditioner R134a Refrigerant CE Certified

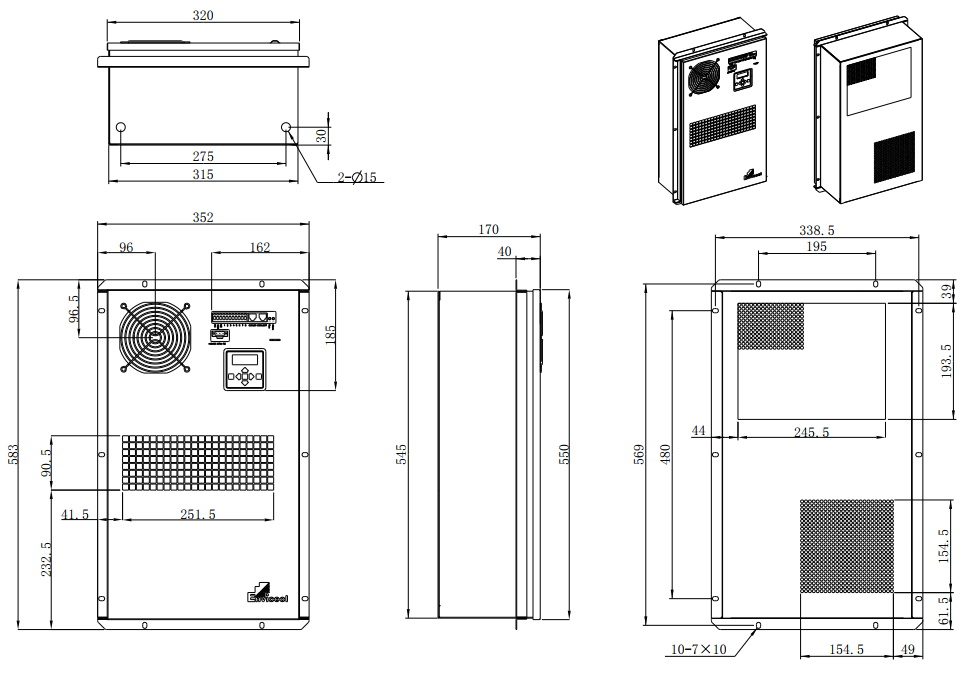

Dimension Diagram



500W DC Outdoor Telecom Cabinet Air Conditioner R134a Refrigerant CE Certified
