Name: Temperature Control Outdoor Telecom Cabinet IP55 Ingress Protection With Generator Socket
Brand: ESTEL
Price: 1 USD

Brand Name : ESTEL

Model Number : ET9090210-D

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : L/C,D/A,T/T, Western Union, Paypal, etc

Supply Ability : 6,000 sets per month

Delivery Time : 10-15 working days

Packaging Details : wooden case

External Dimension : W×D×H 900×900×2100mm

Material : Sandwich srructure panel, galvanized steel, double wall with heat insulation

Cooling : Air Conditioner and Fan :

Layout : The upper part is standard 19” installation rack (22U), the lower part is two battery shelves for installing two string batteries.

Ingress Protection : IP55

Working Temperature : -40°C ~ +55°C

Contact Now

Temperature Control Outdoor Power Cabinet / Outdoor Telecom Cabinet With Generator Socket

1. Specifications

(1) Technical Parameters

Ingress Protection: IP55

Grade B Lightning Proof: Nominal: 60KA, Max.: 100KA

Temperature: Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Relative Humidity: 5% ~ 100%

Air Pressure: 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Solar Radiation: 1120 ×(1±5%)W/m2

(2) Accessories List

No.	Item	Quantity	Unit	Specs

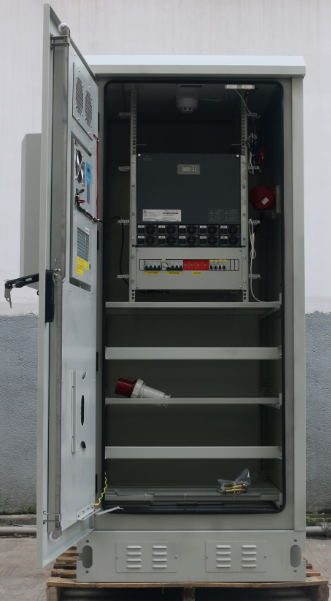

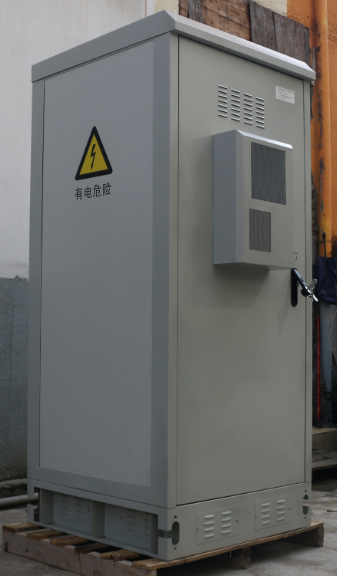

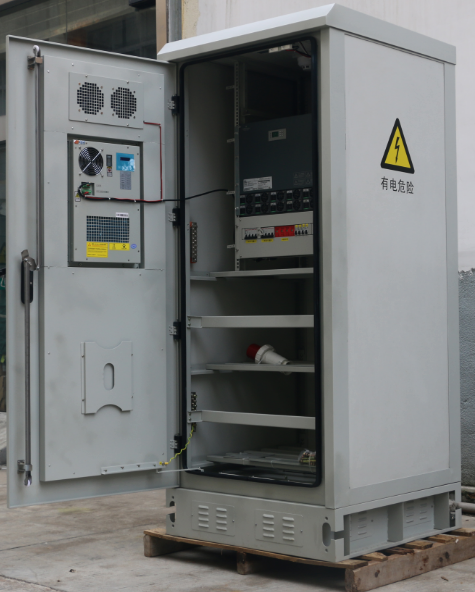

1	Outdoor Power Cabinet	1	Set	(1) External Dimension: W×D×H 900×900×2100mm (2) One compartment: the upper part is equipment bay, the lower part is battery bay. (3) With one front door, and special anti-theft lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; Sandwich structure panel. Double wall with heat insulation
2	Air Conditioner	1	Set	Cooling Capacity: 500W; Power Supply: AC220V, 50HZ;
3	Fan	2	PC	DC48V

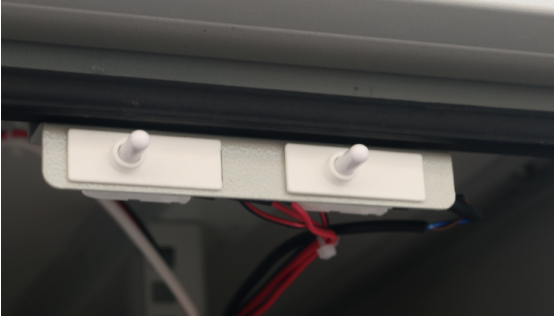

4	Door Sensor	2	PC	One for controlling LED lamp, one for open door alarm.

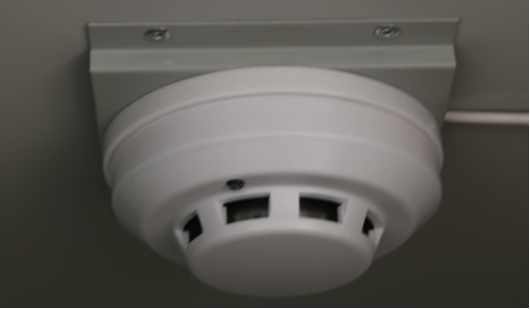

5	Smoke Sensor	1	PC

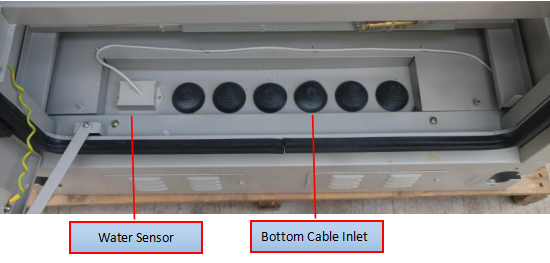

6	Water Sensor	1	PC

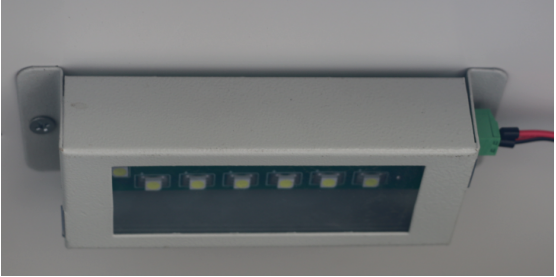

7	LED Lamp	1	PC	DC48V, including LED lamp switch
8	Power Distribution Unit	1	Set	GRADE B LIGHTNING PROOF 60KA1; AC INPUT: 63A/2P1; AC OUTPUT: 63A/1P2; AC OUTPUT: 32A/1P2; AC OUTPUT: 16A/1P4; MAINTENANCE SOCKET1. Input Voltage: AC220V.
9	Power System	1	Set	Model: NetSure 731 Input: 380-415V 64A 50Hz/60Hz Output: 48V DC, 500A Max, 30KW

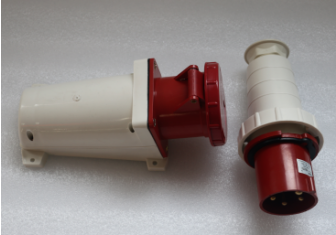

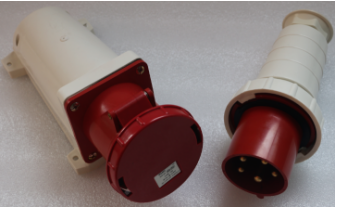

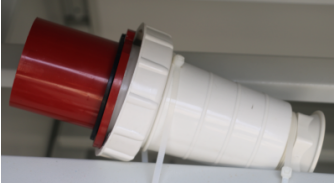

10	Generator Socket	1	Set	Three phase 4 line, 32A
11	Package	1	Set	Wooden Case

2. PDU Principle Diagram
