Name: Energ Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS
Brand: ESTEL
Price: 1 USD

Brand Name : ESTEL

Model Number : ETA003DC

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 16,000 sets per month

Delivery Time : 7-10 working days

Packaging Details : carton + wooden case + pallet

Power Supply voltage Range : DC45~59 V

Cooling Method : compressor, active cooling

Application : Cooling for telecom cabinet, base station room

Installation : Side mount

Working Temperature Range : -15 - +55

Contact Now

Energy Saving Variable Frequency 300W DC Air Conditioner With R134a Refrigerant MODBUS Protocol IP55

Product Feature

Designed with all DC driven components like fans, compressor.
Precise temperature control through inverter digital regulation of compressor, fans.
Wide power supply voltage range: DC45~59 V
A comprehensive self-protection design to realize partial load starting, partial load operation at severe ambient condition
Low power consumption design with EER≥3.5
Energy saving reach to 50% comparing with A.C. version product
Strict process control and international brand parts deployed to ensure high quality and reliability of product
IP55 protection grade, suitable for T3 high temperature working condition, using environmentally friendly R134a refrigerant gas
The best choice for solar / wind / battery power supply cooling demand
Multiple self protection design & Interchangeable monitoring software interface, RS485 communication through MODBUS protocol.

Technical Data

Product Model		ETA003DC
Dimensions, Weight & Mount
External Dimensions (H x W x D)	MM	400x240x150
Weight	KG	7
Mounting Method		Side Mounting
Application		Outdoor
Environmental Protection & Performance
Working Temperature Range	ºC	-15 to +55
Noise Level	dB(A)	60
IP Grade	IP	IP55
Refrigerant		R134a
CE & RoHS Compliant		YES
Cooling Capacity & Operational Data
Cooling Capacity@L35 / L35 Cooling Capacity@L35 / L55	W W	300 180
Internal Airflow	M³/h	100
Power Consumption@L35/L35	W	130
Power Consumption@L35/L55	W	160
Power, Frequency & Range
Input Voltage	VDC	DC48V
Frequency	HZ	------

Cooling Performance

Cooling Capacity Chart and Power Consumption Chart

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

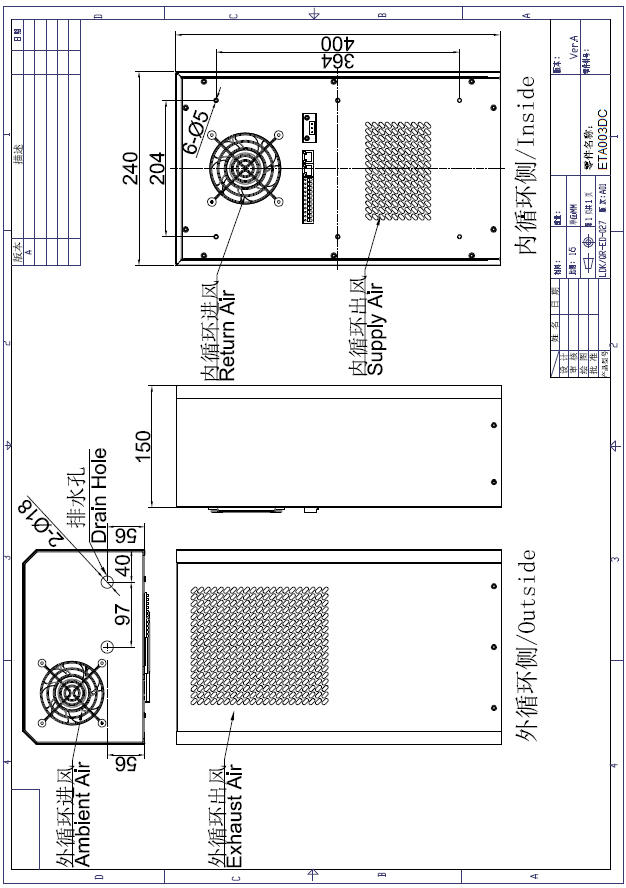

Dimension

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

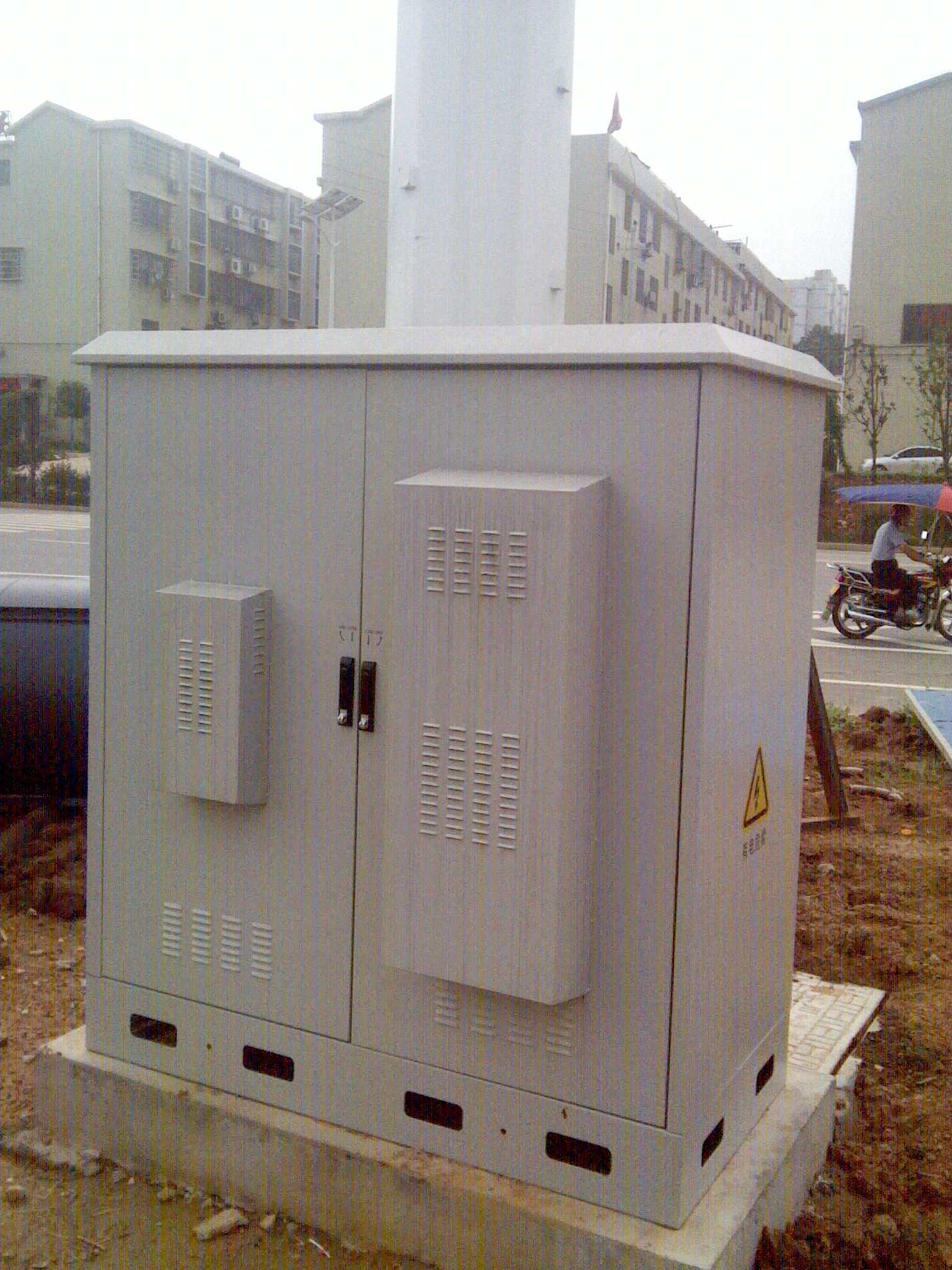

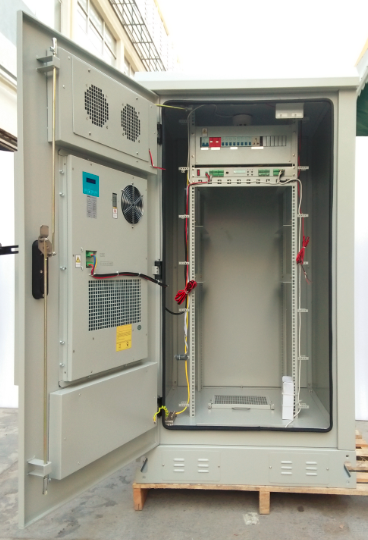

Embedded Installation Used In Telecom Cabinet

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Production Process
