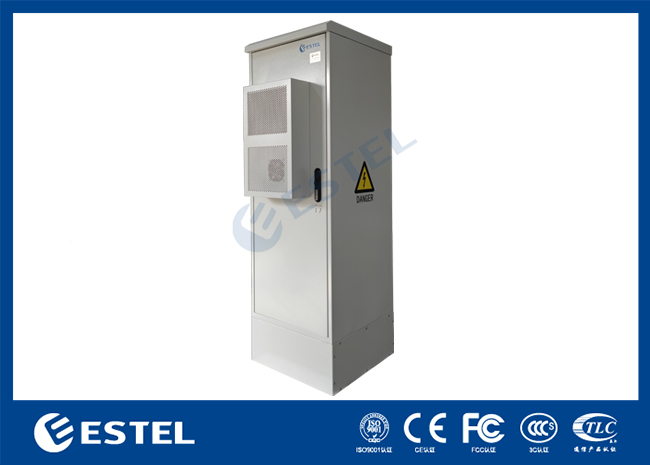

Single Wall 1.2mm Outdoor Telecom Cabinet With AC And FSU One Front Door

Name: Single Wall 12mm Outdoor Telecom Cabinet With AC And FSU One Front Door
Brand: ESTEL
Price: 1 USD

Buy cheap Single Wall 1.2mm Outdoor Telecom Cabinet With AC And FSU One Front Door product

Brand Name : ESTEL

Model Number : ET6060175-32U

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 3,000 sets per month

Delivery Time : 20-30 working days

Packaging Details : Wooden case with pallets

Product Name : Outdoor telecom Cabinet

Dimension : W*D*H 600mm×600mm×1750mm

Material : single wall 1.2mm

Cooling : 500W Air Conditioner

Equipment Rack : 19 inch Rack

IP Rating : IP55

Door : One front door

Customized : yes

Contact Now

Outdoor Telecom Cabinet With FSU And Air Conditioner To Control The Environment

Telecom cabinet ET6060175-32U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather

conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both

active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.

Cabinet Features

-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.

-Made of heavy gauge galvanized material.

-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

-Standard 19 inch mounting posts.

-Doors secured with steel dead locking system lock (support PADLOCK)

-It is installed in the ground root or above ground column base system by "direct burying"

-Cable entry is via the base as standard with side or roof entry available upon request.

Cabinet Technical Parameters

Configuration	Item	Technical Parameter
Cabinet	Model	ET6060175-32U
	Protection Level	IP55
	External Dimension	H1750mm×W600mm×D600mm ( can be customized)
	Internal Dimension	19 inch rail,32U
	Material	Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm
	Insulation	PEF (optional)
	Coating	Polyester powder coating
	Color	RAL7035
	Lock	Anti-theft three-point locking system
	Hinge	Inner hinge
	Installation Options	Floor mounted
	Cable Routing	Cable in and out from the bottom of cabinet
	Maintenance	One front door, front maintenance
Cooling	Options	AC air conditioner
	Cooling Capacity	500W/
	Input Voltage	220VAC 50HZ
	Communication	RS485
Power Distribution Unit	B Grade lightning Proof
	AC Intput	63A/2P ×1(optional)
	AC Output	16A/1P×4 (optional)
	DC Output	16A/1P×4. (optional)
FSU	19 inch installation, 1U high, 220V input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output.
Sensors	1 x smoke sensor, 1 x water sensor, 1 x temperature and humidity sensor, 1 x door sendor, 1 x vibration sensor.
Others	LED lamp for illumination
Environment	Working Temperature	-40℃ ~+55℃ (+Solar Radiation)
	Storage Temperature	-40℃~+70℃
	Working Humidity	5%~95%(No condensation)
	Working Altitude	0~4000 meters

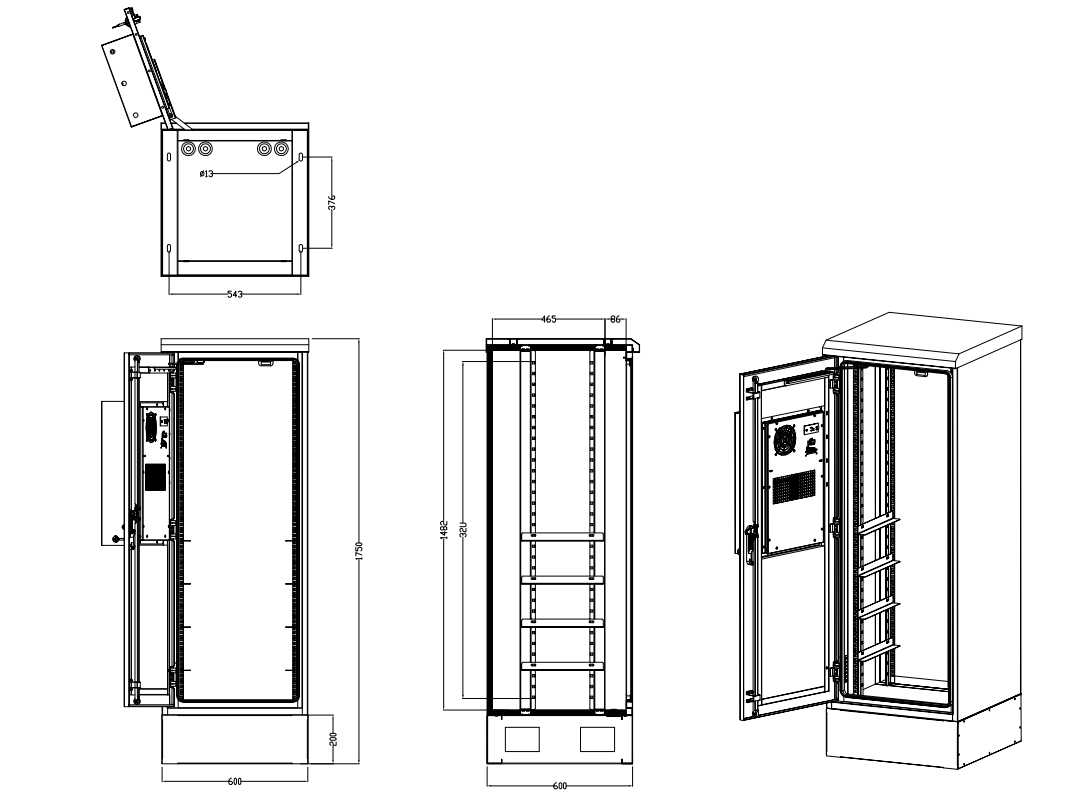

Cabinet Diagram

Single Wall 1.2mm Outdoor Telecom Cabinet With AC And FSU One Front Door

Functions of FSU:

Data Collection and Processing

Sampling and Monitoring: FSU is equipped with various monitoring modules and auxiliary devices that directly face equipment and sensors within a base station to collect and process data.
Data Relay: It serves as a bridge between the monitoring terminal and the monitoring center, relaying data between them.

Remote Monitoring and Fault Detection

Remote Supervision: FSU communicates with the monitoring center to enable remote monitoring of on-site conditions.
Fault Detection and Alarm: It can detect faults in real-time and send alarm information to the monitoring center for prompt handling.

Core Role in Monitoring Systems

Data Processing Hub: In an intelligent environmental monitoring system for tower base stations, FSU is the core of data processing for the entire monitoring system.

Versatile Applications

Different Fields: Besides base station monitoring, FSU can also refer to other types of on-site monitoring units, such as those in fire protection and security fields.
Real-time Monitoring: These units are used for real-time monitoring of various parameters and states at the site to ensure safety and normal operation.

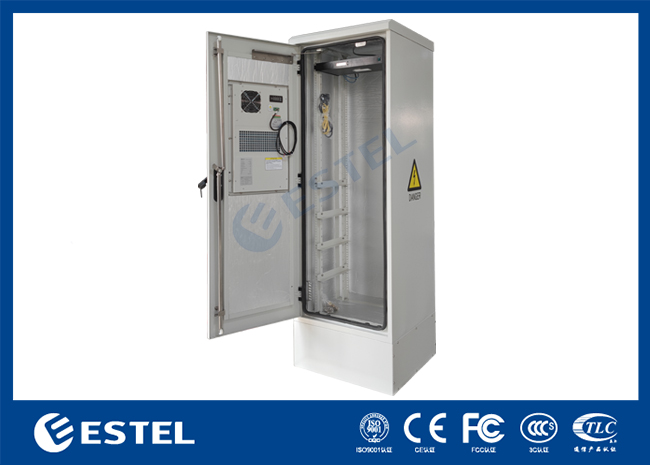

Real cabinet pictures:

Single Wall 1.2mm Outdoor Telecom Cabinet With AC And FSU One Front Door
