1000mm 16U Standard 19inch Rack Outdoor Server Cabinet Weatherproof Electronics Box

1000mm 16U Standard 19inch Rack Outdoor Server Cabinet Weatherproof Electronics Box

1. 16U Outdoor Server Cabinet

Our 16U outdoor serve cabinet refers to an outdoor enclosure or cabinet specifically designed to house telecommunication equipment, with a height of 16 rack units (U). Rack units (U) are a standard measurement unit for server and equipment racks, representing the height of 1.75 inches (44.45 millimeters).

Here are some key points about our 16U outdoor serve cabinet:

1. Durability: Outdoor cabinets must be able to withstand harsh environmental conditions such as extreme temperatures, precipitation, dust, and UV exposure. They are typically made of corrosion-resistant materials like stainless steel or powder-coated aluminum.

2. Security: The cabinets often feature secure locking mechanisms to protect the equipment from unauthorized access.

3. Ventilation: Proper ventilation is crucial to prevent overheating of the equipment. Outdoor cabinets often have ventilation louvers, filters, and fans to allow airflow.

4. Cable Management: They provide cable management systems, such as tie-down points and grommets, to organize and route cables efficiently.

5. Shelter: Some cabinets may also provide shelter for equipment such as antennas or radios mounted on top.

6. Mounting Options: They can be mounted on poles, pedestals, or walls, depending on the specific application and environment.

7. Environmental Monitoring: Some advanced outdoor cabinets feature environmental monitoring systems that can alert operators to changes in temperature, humidity, or other environmental conditions.

8. IP Rating: The IP (Ingress Protection) rating indicates the cabinet's ability to protect against dust and water ingress. Outdoor cabinets typically have a high IP rating to ensure they are suitable for outdoor use.

When selecting an 16U outdoor serve cabinet, it's important to consider the specific requirements and conditions of the intended application, including the environment, equipment needs, security requirements, and budget.

2. 16U Outdoor Server Cabinet Application Area

Outdoor server cabinets are designed to house and protect computer and networking equipment in outdoor environments. Their application areas are typically those where it is necessary to have a server or networking infrastructure located outdoors due to space constraints, the nature of the operations, or the need for direct access to outdoor resources.

Here are some common application areas for outdoor server cabinets:

1. Telecommunication Base Stations: Mobile phone networks, radio networks, and other telecommunication systems often require servers and network equipment to be located at remote base stations. Outdoor server cabinets provide the necessary protection and shelter for this equipment.

2. Industrial Environments: In industrial settings, servers and networking equipment may need to be located outdoors due to the nature of the operations. For example, factories, warehouses, and mining sites may have outdoor server cabinets to support their operations.

3. Public Safety and Security: Police stations, fire departments, and other emergency services may have outdoor server cabinets to support their communication and data needs. These cabinets can house equipment that is critical for maintaining secure and reliable communication systems.

4. Remote Monitoring and Control: Outdoor server cabinets are often used to house equipment for remote monitoring and control applications, such as surveillance systems, traffic management systems, and environmental monitoring systems.

5. Transportation Infrastructure: Equipment for transportation systems, such as railway signaling, highway monitoring, and airport operations, may require outdoor server cabinets to ensure reliable and continuous operation.

6. Rural and Remote Locations: In rural and remote areas where indoor facilities are limited or nonexistent, outdoor server cabinets provide a secure and reliable way to house and protect computer and networking equipment.

Overall, outdoor server cabinets are used in a variety of applications where it is necessary to have server and networking equipment located outdoors. They provide the necessary protection and shelter for this equipment to ensure its reliable and continuous operation in harsh environments.

3. Technical Data Sheet

4. Accessories List

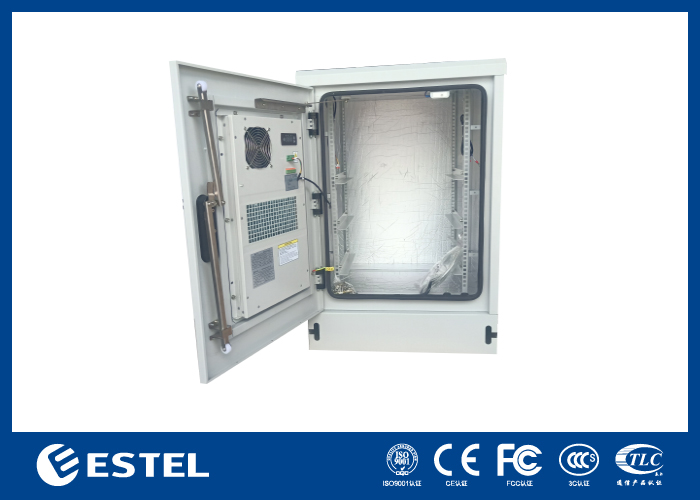

5. Cabinet Picture

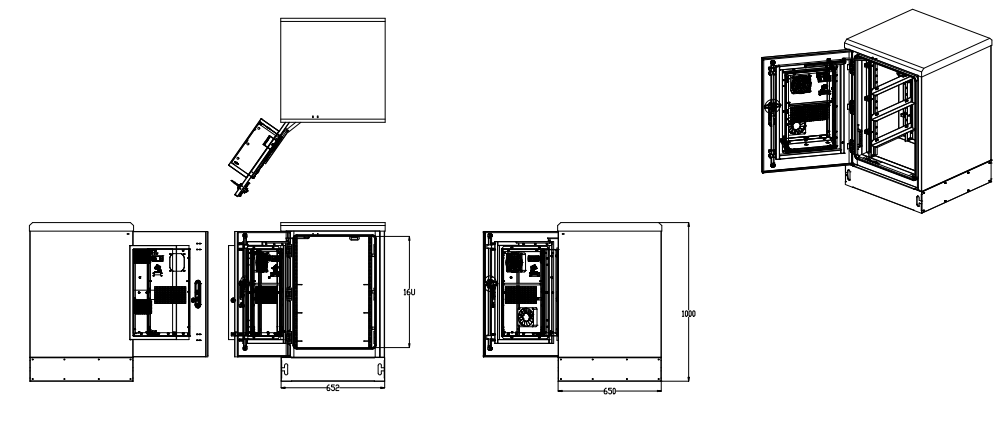

Cabinet Diagram

6. Cabinet Description

6.1 Cabinet Material

The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.

6.2 Cabinet Door and Lock

The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.

7. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

8. Packing

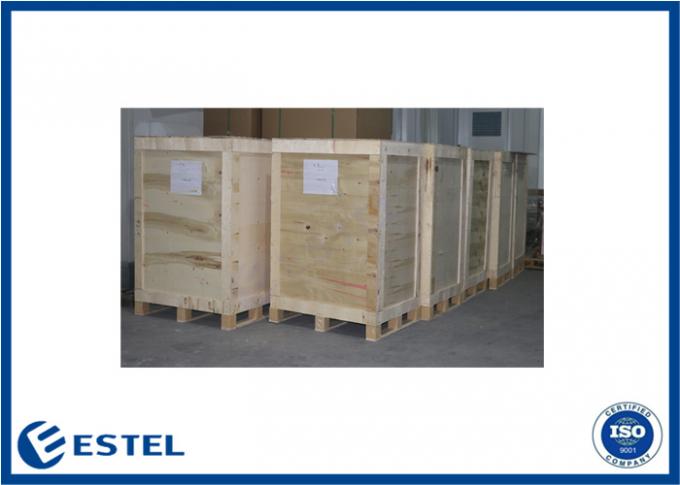

Woodcase packaging

Weatherproof Electronics Box for Server

Weatherproof Outdoor Server Cabinet

16U Outdoor Server Cabinet

1000mm 16U Standard 19inch Rack Outdoor Server Cabinet Weatherproof Electronics Box Images
